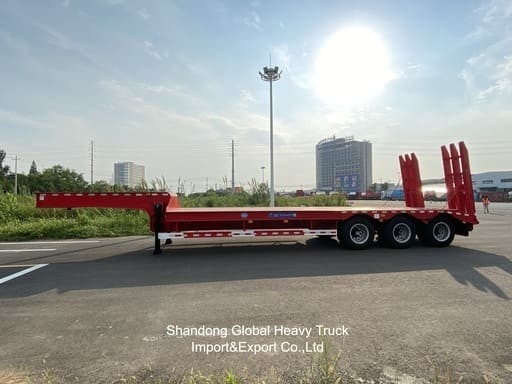

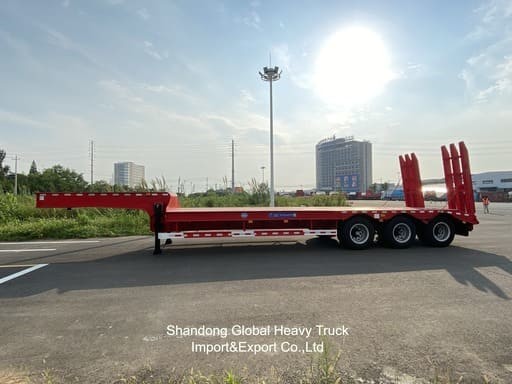

New Models of Multi-Axle Heavy-Duty Low Flatbed Semi-Trailers with Direct Factory Sales

New Models of Multi-Axle Heavy-Duty Low Flatbed Semi-Trailers with Direct Factory Sales

Product Information

• Axles: 13T16P (Brands: BPW, FUWA, Yonglitai, Huajin, etc.)
• Suspension: Mechanical, Air, or Single-point suspension
• Landing Gear: Standard 28-ton (Brands: JOST, FUWA, etc.)
• Tires: 12R22.5 / 12R20
• King Pin: 2" (50mm) or 3.5" (90mm)

Packaging & Delivery

• Packaging: Shipped by RO-RO, container, or bulk cargo carrier.
  • 2-3 units per 40-foot container.
  • Stackable up to 3-4 units when transported by bulk cargo carrier.
• Port of Shipment: Any port in China.
• Lead Time:
  • 1-10 units: 30 days.
  • Over 10 units: Negotiable.

Product Features

1. Durable Construction: Made with T700 high-strength steel for enhanced durability and resistance to twisting and shock.
2. Low Center of Gravity: Optimized design for stability when transporting ultra-tall loads and navigating obstacles.
3. Versatile Use: Suitable for long-distance transport on various road conditions.
4. Customizable: Available in payloads ranging from 30 to 200 tons based on customer requirements.

Service Commitment

• Customization: Tailored solutions for dimensions, configurations, and colors.
• Quality Assurance: Rigorous quality inspections to meet international standards.
• Long-Term Support: Lifetime technical support and after-sales service.
• Proven Reliability: No customer complaints in the past 10 years, even from large buyers.

Applications

• Heavy machinery (excavators, loaders, road rollers).
• Large equipment (power generation units, storage tanks, mining machinery).
• Special-purpose vehicles (buses, rail vehicles, forestry machinery).

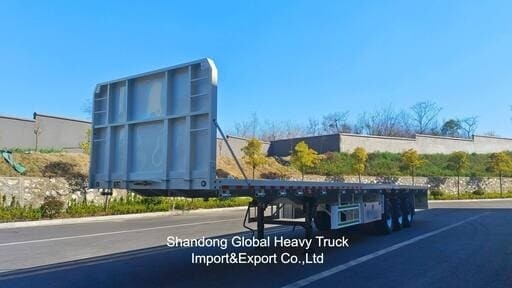

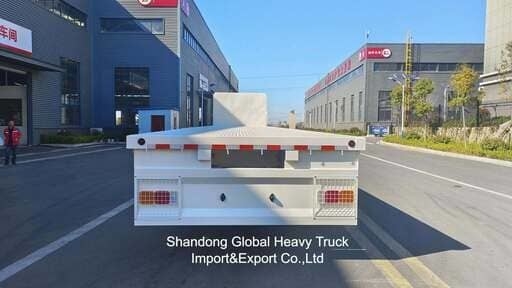

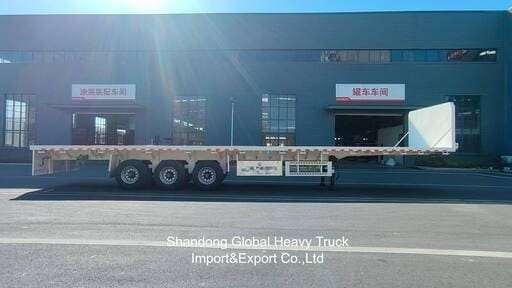

Type 3 axles 40ft Flatbed container trailer Lead time 20 working days from receive the deposit Weight:       Tare Weight 7.3 Tons   Payload 50T   Axle Weight Load 3x 13T FUWA axle Specification:     Suspension Spring suspensions   King Pin Jost 50#/90# traction pin   Dimensions 12420×2490×1560mm   Steel Spring 10 pieces (130x90mm) Tire:       Tire specs. 12R22.5 Tubeless tyre   Number of Tire 12 pieces   Spare Tire Carriers 2 pieces Frame: (specs. and materials) Main frame is height 500mm . Q345B   Frame Beam Upper/ lower plate is14/16 mm,middle is 8mm   Frame Floor The Thickness is 4mm flat bed   Side Frame 18/20cm Brake:       Brake WABCO/ KEMI system   Brake Chamber Two double and two single chamber Electrical:       Voltage 24V   Receptacle 7 ways(7 wire harness) Rail Light LED   Side marker lamp Orange   Rear lamp Red   Turn signal lamp Orange Twist lock 12 sets Landing Leg support: China brand, 28T Load capacity 1x20ft, 1x40ft, 2x20ft
