| Place of Origin: | China |
| Brand Name: | sinotruk |
| Certification: | iso/ccc |
| Model Number: | howo |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 400 Unit/Units per month |
| Model NO.: | ZZ1107D3815C1R | Certification: | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
|---|---|---|---|
| Emission Standard: | Euro II | Tank Volume: | 10001-15000L |
| Drive Wheel: | 4×2 | Seats: | ≤5 |
| Horsepower: | 150-250hp | Engine Capacity: | ＞8L |
| Storage: | Oil | Tire Certification: | ECE, GCC, ISO, DOT |
| Tire Design: | Radial | Wheelbase(mm): | 4500 |
| Tire Specifications: | 10.00r20 |

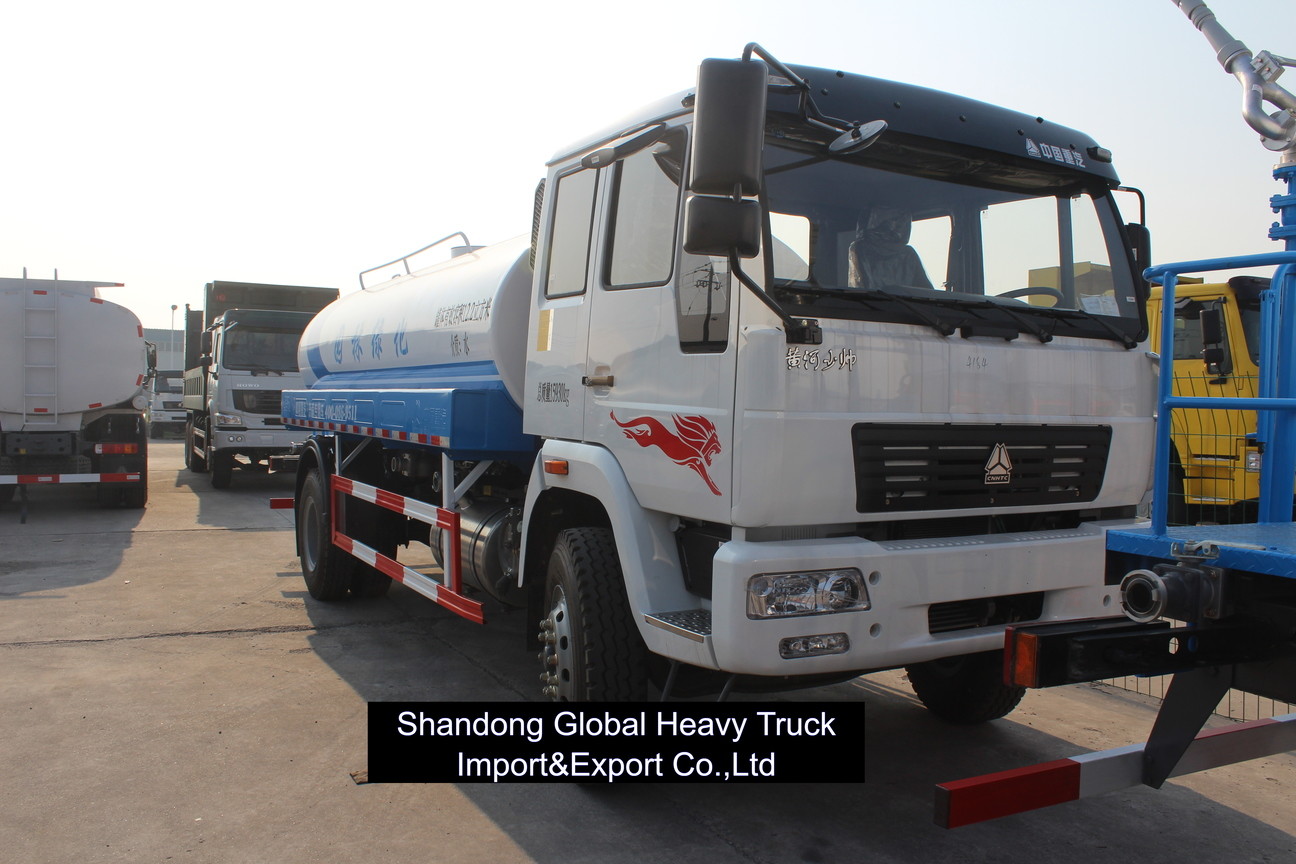

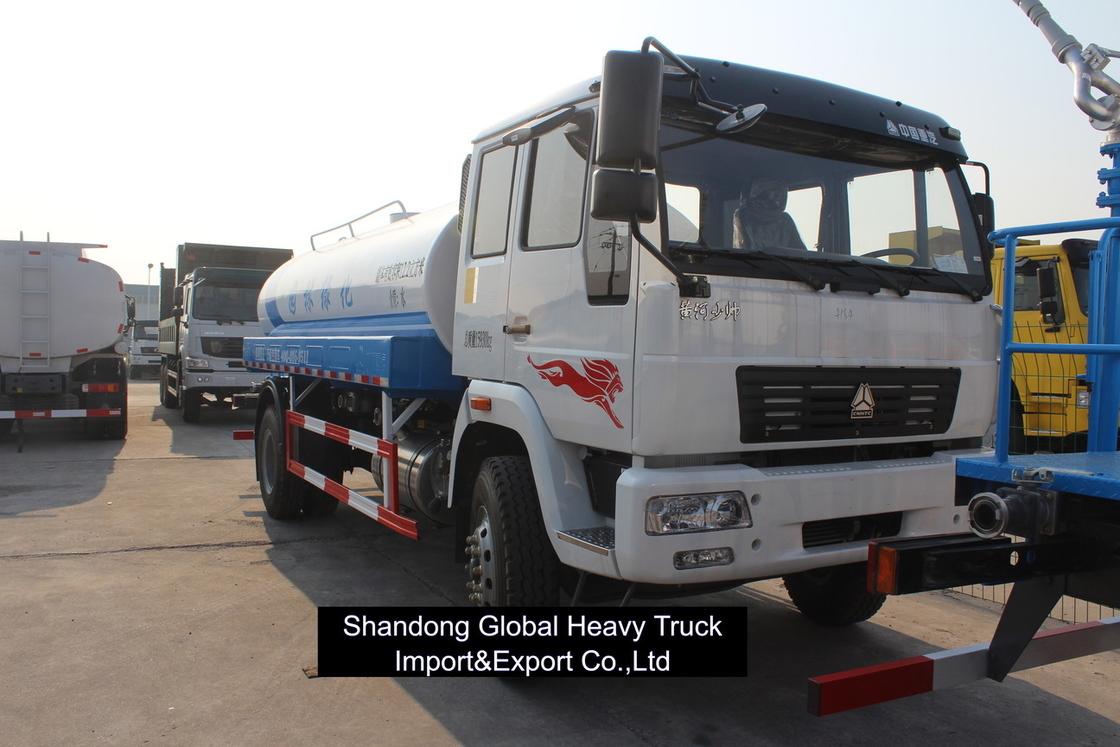

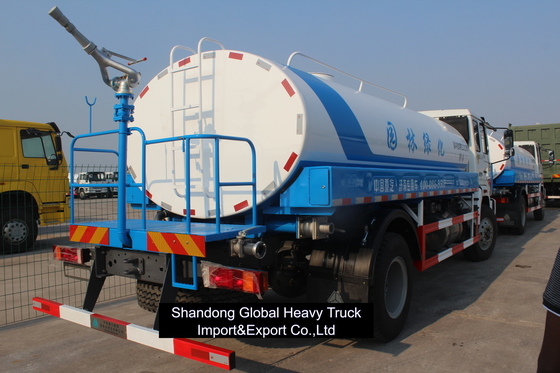

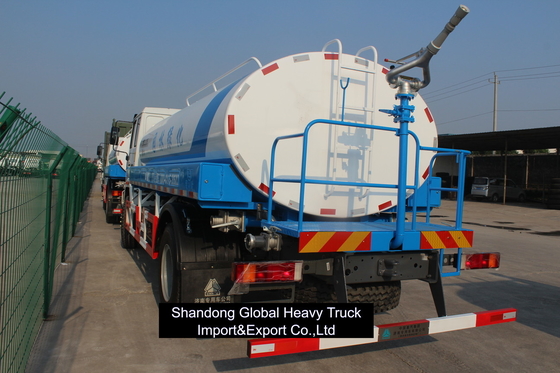

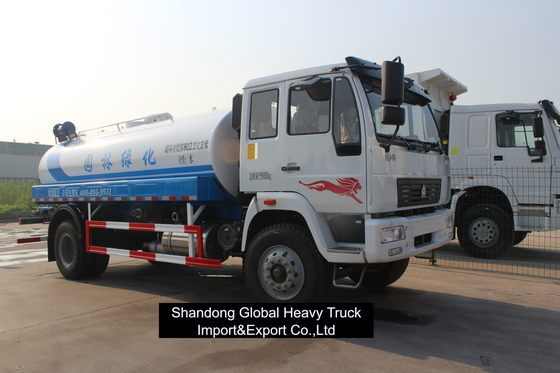

| SINOTRUK HOWO 6x4 WATER TANK TRUCK SPECIFICATIONS | ||
| Truck Model | ZZ1257V4647B1 | |
| Truck Brand | SINOTRUK-HOWO | |
| Dimension (LxWxH) (unloaded)mm | 10650×2550×3450 | |
| Tank volume(m³) | 20m³Pump:Water sprinkling truck dedicated pump, Front sprinkle,rear spraying,High-pressure water gun. | |
| Approaching angle/ Departure angel (°) | 16/12 | |
| Overhang (front/rear) (mm) | 1500/2875 | |
| Wheel base (mm) | 4575+1400 | |
| Max. Driving speed (km/h) | 95 | |
| Front axle loading capacity (kg) | 9500 | |
| Rear axle loading capacity(kg) | 2*16000 | |
| Curb weight (kg) | 12390 | |
| Gross vehicle weight | 30000 | |
| Cab Model | SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner. | |
| Engine Model | Model | WP12.400E201(EURO II),400hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Rated Power(kw/rpm) | 294/2100 | |
| Make WEICHAI, Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan | ||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |
| Transmission | Model | SINOTRUK HW19710 transmission ,10 forward and 2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking Brake(emergency brake) | Spring energy, compressed | |
| Steering system | Model | Gear Box ,hydraulic steering with power assistance.(Left hand driving) |
| Front axle | SINOTRUK VGD95 Front Axle,new 9.5-ton front axles of equipped with drum brakes. | |
| Rear axle | SINOTRUK 2*16000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |
| Wheels &Tire | Rims:10 hole-steel ;Tyres:13R22.5 tubeless tyre with 1 Spare tire. | |
| Electrical system | Electrics Operating voltage | 24V,negative grounded |
| Starter | 24V,7.5 Kw | |
| Alternator | 3-phase,28V,1500 W | |
| Batteries | 2x12 V,165 Ah | |
| horn,headlamps,fog lights,brake lights,indicators and reverse light. | ||
| Oil Tank | 400L fuel tank | |
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||
Contact Person: Mr. Zhang
Tel: 86-15275410816
