| Place of Origin: | CHINA |
| Brand Name: | SINOTRUCK |
| Certification: | CCC/ISO/CE/GOST |
| Model Number: | BCZH-20 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PACKAGE IN NUDE |
| Delivery Time: | 15-30 WORK DAYS AFTER DEPOSIT |
| Payment Terms: | L/C/ TT, D/P, D/A, Western Union |
| Supply Ability: | 1000 UNIT/ MONTH |
| Charge Capacity:: | 20T | Charge Efficiency：: | 200~500kg/min |
|---|---|---|---|
| Mixed Pure Emulsion Explosive:: | 200-300 Kg/min | Mixed Ammonium Explosive:: | 500 Kg/min |
| Measurement Error:: | 2% | Dimensions: Length × Width × Height: | 11470×2500×3900 Mm |
| Color:: | White | Engine:: | 430HP |
| Gearbox:: | 12 SPEED | ||
| Highlight: | Safety reliability Tread Bulk Trucks,Heavy Safety reliability Tread Bulk Trucks |
||

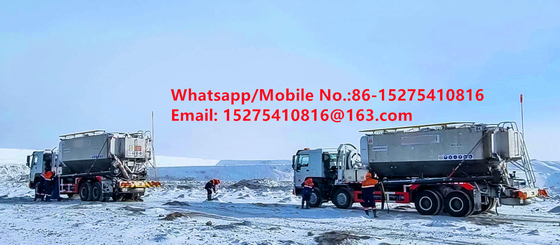

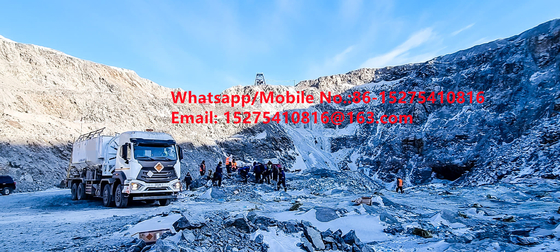

HOWO 15T On-site mixed heavy ammonium fry drug Truck for Mongolia mines Blasting BCLH/BCRH/BCZH
Safety reliability Tread Bulk Trucks 15/20/25Ton Heavy Ammonium oil explosive Emulsion ANFO Truck MMU MEMU For Mongolia DR CONGO PERU Ghana Mining Blasting
Function:
BCZH-15 on-site mixed heavy ammonium frying drug cart integrates the transportation, mixing and filling of raw materials. It can mix pure emulsion explosives, various proportions of heavy ammonium explosives and ammonium explosives on site, suitable for open pit mines. Water-containing blasthole and dry-hole charge, this kind of car is a multi-purpose car with good silo configuration performance. It can mix 15t of emulsion explosive or 15t of ammonium fry or 15t of heavy ammonium fry, and advanced computer operation. The system can accurately fill two different formulations of explosives in the same blasthole, and has a safety guarantee system for over-temperature, over-pressure, and material-breaking alarm shutdown, which is safe and reliable.
Description:
• Before charging, at ground station, relevant materials should be added into corresponding container in the truck.
• When loading truck comes to job site, start PTO, stretch charging tube into bottom of the hole, input explosive load on counter and press start button. Then, each preparation and mixing unit begins to work. Slowly raise charging tube. Explosive is charged below water, and water is discharged from hole. After charging, move to the next hole, repeat the above procedure, and charge the next hole.
• Charging effectiveness 200-280kg/min.
• Currently, there are 5 specifications, 8T, 12T, 15T, 20T, 25T.
• Measurement error ≤ ± 2%
Emulsified explosive truck with on-site mixing loading of NCHR line can mix pure emulsion explosives and series emulsion explosive with 30% of dry mix at most on-site. The preparation of aqueous phase, oil phase and sensitizer is operated on ground station, while latex matrix emulsion can be completed on the ground, or in truck. Dry material mixture and sensitization is conducted in truck.
ANFO mixing loading truck list of main equipment
| Item | Name | QT. | Remarks |
| 1 | Vehicle chassis | 1 | HOWO truck chassis |
| 2 |
Material storage tank,Ammonium nitrate box:12m3, Fuel tank:1 m3 |
The volume size can be designed according to user requirements 304 stainless steel | |
| 3 | Screw conveyor | 3 bar | 304 stainless steel |
| 4 | Hydraulic pressure system | 1 set | Engine power,hydraulic oil pump,hydraulic oil container,radiator,hydraulic motor,solenoid valve group and so on |
| 5 | Automatic control system | 1 set | sensor,computer,control software,safety interlock system and so on |
Main technical parameters of ANFO Truck
| Chassis model | HOWO 8x4 truck chassis |
| Probable outline dimension (mm) | 11000x2500x3400 |
| Chassis Number | ZZ1317N4667W |
| Max.speed(km/h) | 80 |
| Power Source | Automobile engine |
| Porous ammonium nitrate box m3 | 20 |
| Diesel feed box m3 | 1 |
| Hydraulic oil tank m3 | 0.5 |
| Charge rate kg/min | ≥200 |
| measurement error | ±2% |
| Filled aperture mm | ≥Φ90 |
| Safety precautions | Over temperature protection, disconnection, chain startup and stop |
HOWO 8x4 truck chassis information
| General information | |
| Driving Type | 8X4 |
| Wheelbase | 4600mm |
| Overall length | 11.00m |
| Overall width | 2.496m |
| Overall height | 3.50m |
| Front/ rear tread | 2020/1830mm |
| Curb weight | 14.00T |
| Total mass | 31.00T |
| Approach angle/ Departure angle | 15/25 |
| Suspension form | 10/9+6 |
| Engine information | |
| Engine model | WD615.47 |
| No. of cylinders | 6 |
| Fuel type | Diesel |
| Cylinder arrangement | In-line |
| Displacement | 9.726L |
| Emission standard | Euro III |
| Max. torque speed | 1200~1500RPM |
| Rated revolution | 1900RPM |
| Cabin information | |
| Person | 2 |
| Rows of seats | 1 |
| Gearbox information | |
| Gearbox type | HOWO gearbox |
| Shift mode | Manual |
| Forward gear | 10 |
| Reverse gear number | 2 |
| Tyre | |
| No.of tyre | 12+1 |
| Tyre model | 12.00-20 |
Applications:
Mainly used for ammonium nitrate fuel oil mixture (ANFO) filling to no water blast hole for large/medium size open-pit blasting stopes, such as metallurgy, coal, chemicals, and building materials etc.
Competitive Advantage
1. Professinal Sales Team of trucks. Our target is not selling trucks, we help customers choose the best suitable trucks.
2. Fast production period, and quick arrangement of delivery.
3. Professional team for spare parts and aftersale services.
Packaging & Shipping
RO-RO ship
Our Services
We supply technical service and tools.
FAQ
Q: How can we trust your company?
A: We are the first class dealer of Dongfeng commercial vehicle for many years.
Q: What is your warranty term?
A: We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your factory.
Q: How about your product quality?
A: All of our products come from the original factory, and the quality is guaranteed by 100 hundred percent.
Q: How do you transport the trucks?
A: There are alternative ways of transportation including RORO ship, bulk cargo ship, flat rack container, 20' container, 40' container, 40' HQ, 40' top open container, and LCL to your requirements.
Q: Can I be your agent in my country?
A: We welcome you become our agent if the order quantity is appropriate and establish long-term cooperative relationship.
Tag: Explosive/ ANFO/Heavy ANFO/Site mixed granular/ TRUCK/MEMU/MMU/Mobile Explosive Manufacturing Unit/BULK TRUCK/BLASTING/TREAD BULK TRUCKS
