| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ3257N3847A |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Transmission Type: | HW19710 | Emission Standard: | Euro 2 |
|---|---|---|---|
| Tire: | 12.00R20 | Model: | ZZ3257N3847A |
| Condition: | New | Color: | Optional |
| Highlight: | HOWO Heavy Duty Dump Truck,ZF8118 Heavy Duty Dump Truck,howo 6x4 dump truck |
||
HOWO 6x4 Heavy Duty Dump Truck Euro 2 Emission Standard With ZF8118 Steering
Product Description
1.Popular dump truck both in domestic country and abroad.
2.10 Years export operation experience
3.Reasonable Price
4.Quick Delivery
5.Low oil consumption and longer lifespan.
Applications:
1.The engine power 266hp-371hp,suitable for all kinds of roads.
2.Left hand driving and right hand driving for different countries.
3.Heavy loading dump truck,loading ranges from 15 tons to 70 tons.
4.For different weather and different environment,different trucks we can supply.No matter in Russia,Africa,south Amercia,middle east,southest Asia,it performs very well.
Product Parameters
| SINOTRUK HOWO 336HP 6x4 dump truck | ||||
| Truck Model | ZZ3257N3847A | |||
| Steering type | LHD or RHD | |||
| Dimension of box (LxWxH) | 5800x2300x1500 mm | |||
| Thickness of box (mm) | Deck:8mm;side:6mm | |||
| Lifting Type of carriage | Middle Lifting,T type | |||
| Overall dimensions (LxWxH) | 8607*2560*3386 mm | |||
| Approach angle/Departure angle(°) | 19/23 | |||
| front/rear suspension (mm) | 1500/1870 | |||
| Wheelbase (mm) | 3825+1350 | |||
| Max speed(km/h) | 75 | |||
| Vehicle Curb weight(kg) | 12460 | |||
| Gross mass (kg) | 25000 | |||
|
Engine
|
Model |
SINOTRUK WD615.69, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and intercooling |
||
| Power, max(kw/rpm) | 336 HP | |||
| Emission | Euro2 | |||
| Transmission/Gear box | Model | HW19710, 10 speeds forward ,2 reverse | ||
|
Brake system
|
Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | Engine exhaust brake | |||
| Steering system | Model | 8118,hydraulic steering with power assistance | ||
| Front axle | HF 9,drum type | |||
| Driving axle | HC16,16ton double reduction | |||
| Tire | 12.00R20,radial tyres,11pcs (one spare) | |||
| Clutch | φ430 diaphragm spring clutch,hydraulic control air power assisted | |||
| Cab |
HW76,one bed,with A/C. VOLVO technology ,comfortable cab. 4-point support floating suspension and shock absorbers, up/down and front/back adjustable steering wheel, VDO instrument and control module,safety belt , air horn,outer sun visor. |
|||
| Electric system | Battery | 2x12V/165Ah | ||
| Alternator | 28V-1500 KW | |||
| Starter | 7.5 Kw/24 V | |||
| Color | red,white,yellow. Optional as per customer’s requests. | |||
Our customer all over the world:
African countries:
Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda
South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.
Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.
Packing:

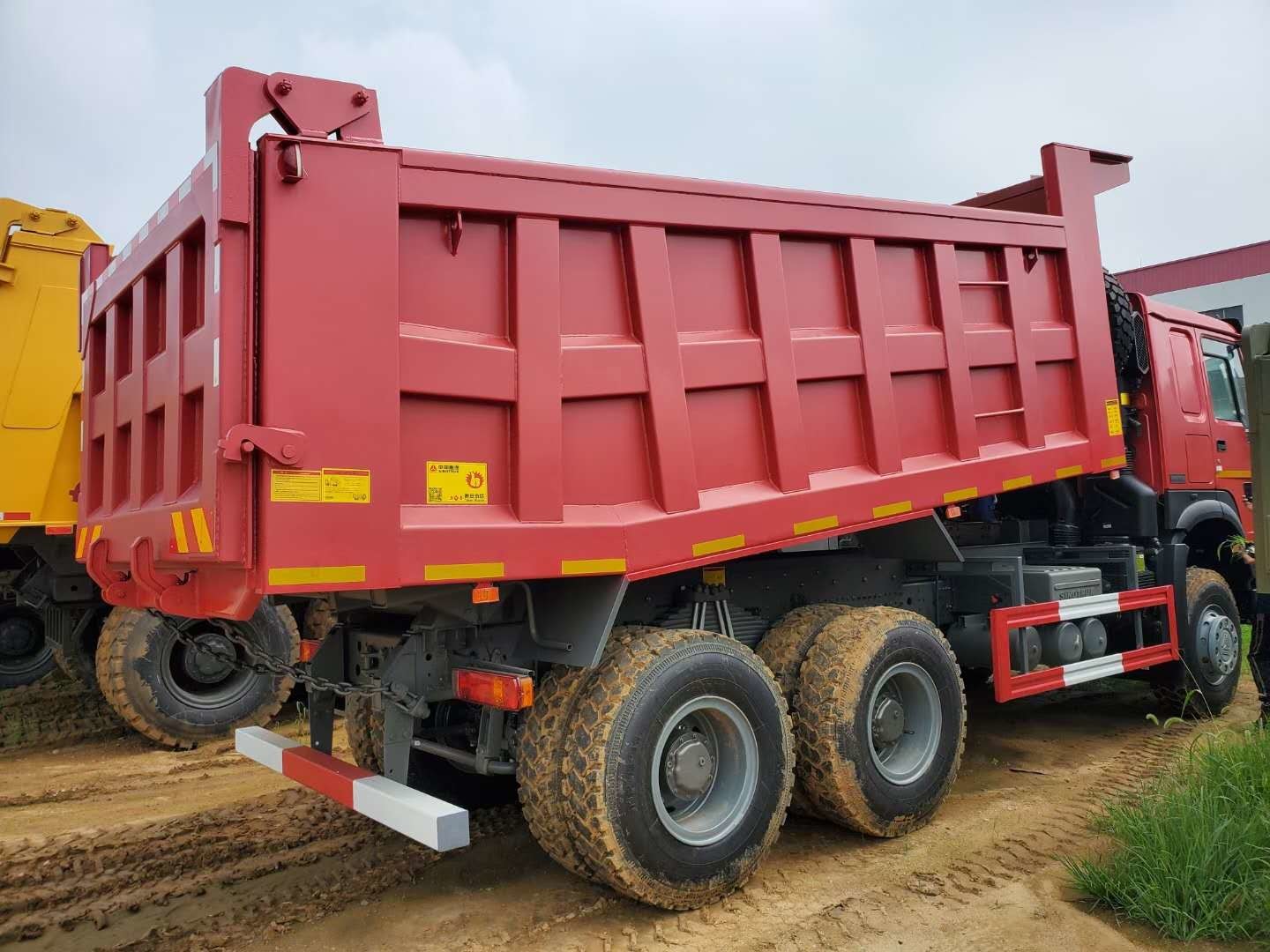

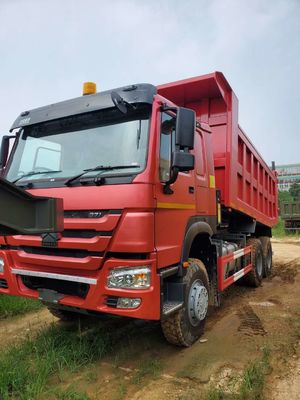

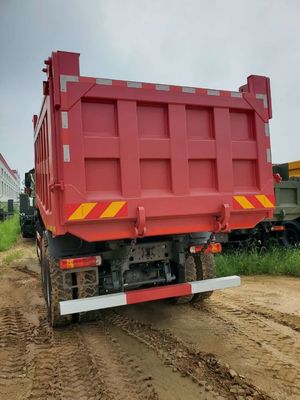

Product Picture
