| Place of Origin: | China |
| Brand Name: | WZ |
| Certification: | ISO/CCC |
| Model Number: | WZ10-20 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Model:: | WZ10-20 | Machine Weight:: | 3400kg |
|---|---|---|---|
| Condition:: | New | Dimension(Long * Breadth * High):: | 5500*1720*2650 |
| Power(W):: | 37w | Color:: | Optional |
| Highlight: | 3.4 Ton Backhoe Loader,37w Road Construction Machinery |
||

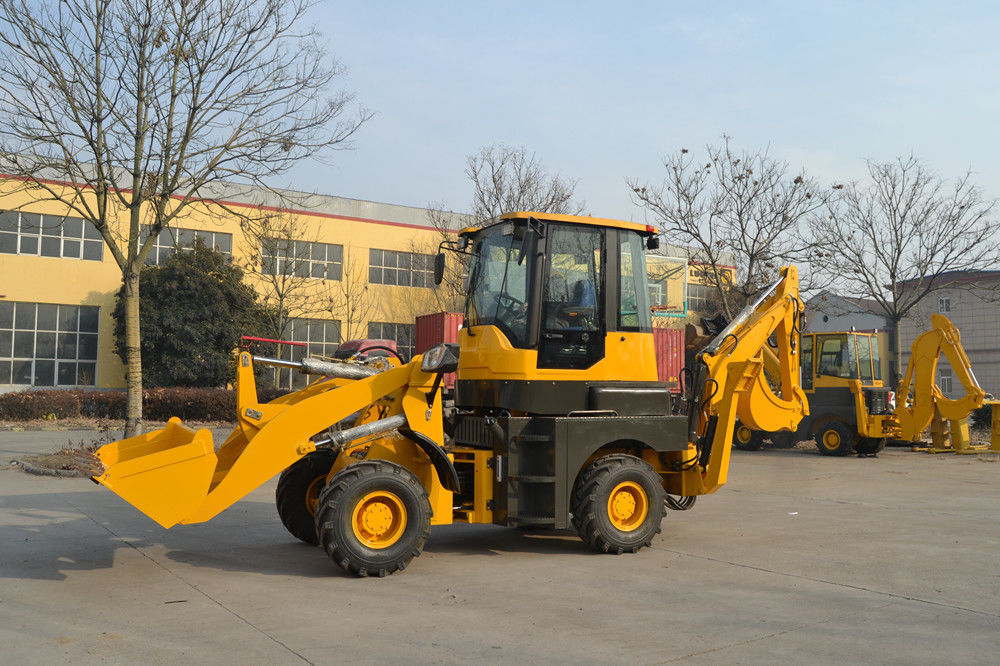

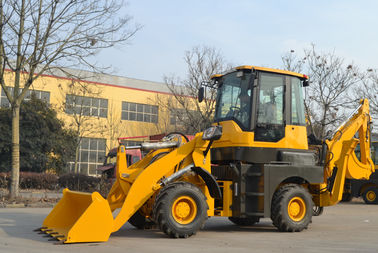

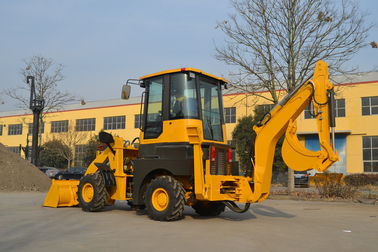

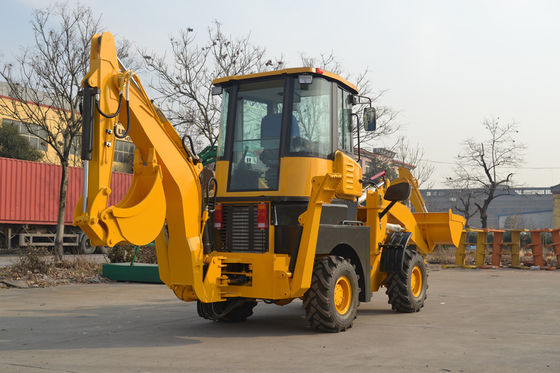

WZ10-20 Backhoe Loader Road Construction Machinery With 3.4 Tons Weight
Product information
Weichai four-cylinder supercharged engine is featured in high fuel efficiency, low emission and large power margin. It is equipped with the driving & steering front axle, maintenance-free wet-type unilateral braking rear axle and four-speed synchronous shift gearbox designed and manufactured specially by CARRARO; its forward and backward directions are switched by electric hydraulic control. The loader working device is an eight-bar automatic leveling mechanism. The bucket is leveled automatically while hoisting, in order to avoid scattering and ensure stable working. The excavator working device can rotate 180 degrees along the gyration center at the back of the frame. The A-shaped stabilizer and the center-positioned excavating device are strong in working stability. Its chassis is an integral type special chassis featured in strong rigidity, impact resistance and compact size. Its cab has a board view and is configured with rail-mounted upturning glass window.
Specification
| Dimensions (mm) | 5500*1720*2650 |
| Operating Weight | 3400 kg |
| Rated Load | 1500 kg |
| Rated Power | 40 kw (55 hp) |
| Backhoe Capacity | 0.1 m³ |
| Loader Capacity | 0.75 m³ |
| Backhoe Max. Digging Depth | 2000 mm |
| Backhoe Max. Digging Height | 3300 mm |
| Backhoe Max. Digging Radius | 2900 mm |
| Backhoe Max. Dumping Height | 1850 mm |
| Loader Max. Dumping Height | 2800 mm |
| Loader Max. Dumping Distance | 800 mm |
| Backhoe Max. Breakout Force | 25 kn (2550 kg) |
| Loader Max. Breakout Force | 36 kn (3672 kg) |
| Travel Speed | 0 - 26 km/h |
| Gradeability | 30° |
| Min. Turning Radius | 3500 mm |
| Working Pressure | 16 MPa |
| Wheel Tread | 1630 mm |
| Wheel Base | 2670 mm |
| Tire Model | 20.5 - 16 |
| Tire Pressure | 250 KPa |
| Transmission Type | Hydraulic |
