| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ4257S3241W |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Brand Name: | SINOTRUK HOWO | Transmission Type: | HW19710 |
|---|---|---|---|
| Emission Standard: | Euro 2 | Drive Wheel: | 6x4 |
| Steering: | ZF8118 | Cab: | HW76 |
| Highlight: | diesel tractor truck,tractor head truck |
||
SINOTRUK ZZ4257S3241W 6x4 10 Wheelers Tractor Truck With HW19710 Transmission
Product Description
A tractor is a general large truck or semi-trailer that is towed by a tool between the front and the car. That is, the front of the car can be pulled out of the original car and pulled out of other cars. The car can also be pulled away from the original head by other fronts. . The front of the car with the driving ability is called the tractor, and the car without the traction drive capability is called the trailer. The trailer is towed by the tractor. There are two ways to connect the tractor to the trailer: the first is that the front half of the trailer is placed on the traction saddle above the rear section of the tractor, and the bridge behind the tractor is subjected to a part of the weight of the trailer, which is half-hook; The front end of the trailer is connected to the rear end of the tractor. The tractor only provides the forward pulling force and drags the trailer to go, but does not bear the downward weight of the trailer. This is the full hanging.
Product Parameter
| Cabin | Driving type 6x4, Left Hand Drive | |
| HW76 Standard cab, with 2 seats, 1 sleepers, with A/C, Manual control door glass; 70°hydraulically tillable to the front | ||
| Main Dimensions | Overall dimensions (L x W x H) | 6900x2496x3340 mm |
| Wheel base | 3225+1350 mm | |
| Wheel track (front/rear) | 2022/1830 mm | |
| Approach/Departure angle | 16/20 degree | |
| Weight | Tare Weight | 9000 kg |
| Hauling Capacity | 45000 kg | |
| Front axles loading capacity | HR9, 1x9000 kg | |
| Rear axles loading capacity | HC16, 2x13000 kg | |
| Max. driving speed | 102 km/h | |
| Engine | Brand | Sinotruk |
| Model | WD615.69 | |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power | 336 HP | |
| Emission standard | Euro-2 | |
| Gearbox | HW19710, 10 forwards & 2 reverse | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 L | |
| Tire | 12R22.5, all tubeless tires with one spare , 11 pieces | |
| Fifth wheel | 2" or 3.5" | |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
FAQ
Q1. Do you have a good organization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line, like MSK,PIL, SUNSHINE SHIPPING, ETC. The order over 500 units of vehicle, we will lease a vessel.
Q2. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.
Q3. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.

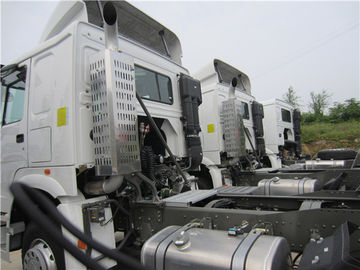

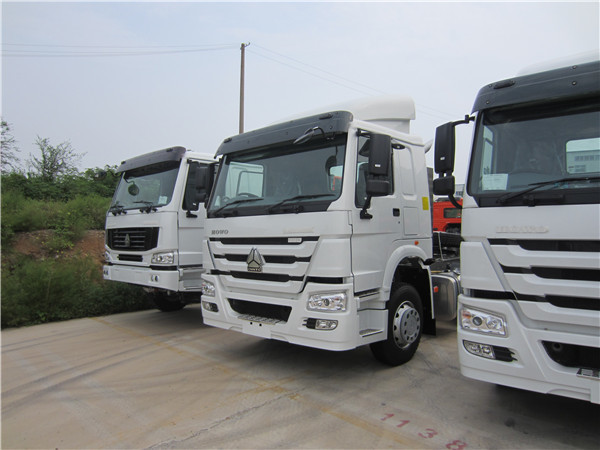

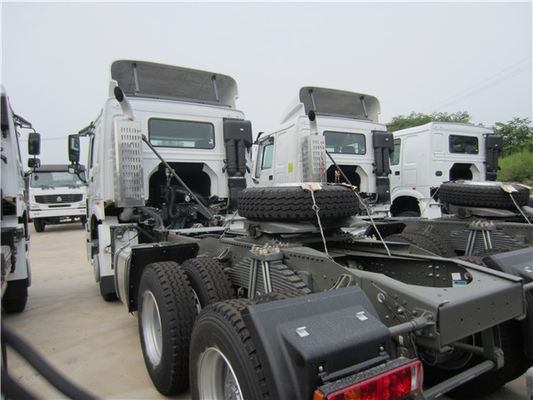

Product Picture
