| Place of Origin: | JINAN SHANDONG |
| Brand Name: | SINOTRUCK HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ1167M4611 |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude. |
| Delivery Time: | 30-45 Work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Cab:: | SINOTRUK HW76 Cab | Wheel Base:: | 4600+1350mm |
|---|---|---|---|
| Steering:: | ZF8198 | Tires:: | 12.00R20 |
| Frame:: | 8+8/300 | Front Axle:: | HF9 |
| Highlight: | fuel tanker trucks,oil tanker truck |
||

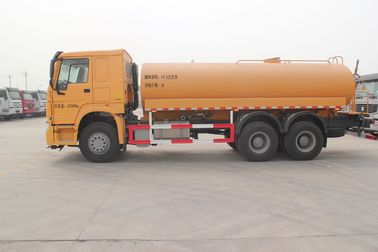

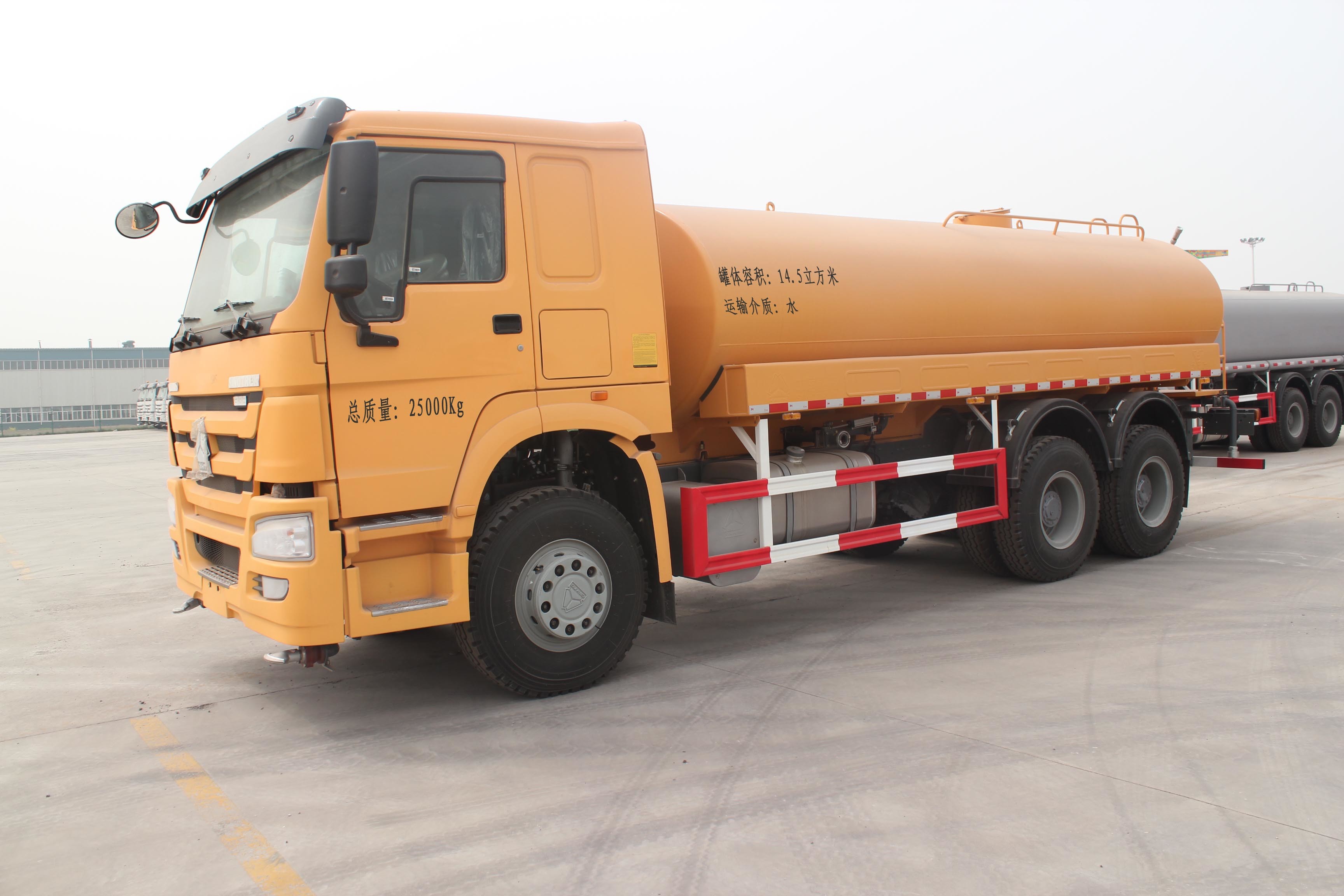

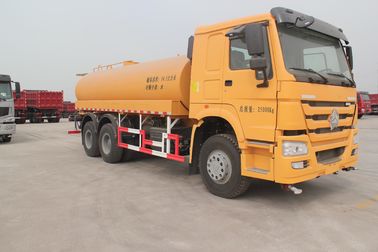

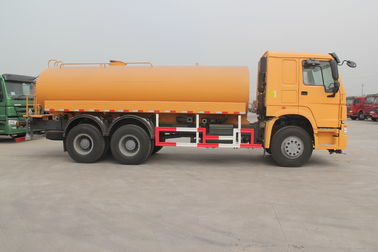

EURO II SINOTRUK HOWO 6x4 16cbm Water Tank Truck With HW76 Cabin And ZF Steering
Description:
HOWO brand water Truck is produced by SINOTRUK.Adopt WD615 series of 6-cylinder in line, 4-stroke, water cooled, turbo-charged inter-cooled,direct injection engine.Have good power economy.
And the brake system have huge advantages.Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Auxiliary brake:engine exhaust valve brake., and it can achieve continuously variable transmission.Rich experience and well after-sale service.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. OEM Manufacturing: Product, Package
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
5.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.And we have rich packing experience and well service.
| Cubage |
15m³(15000L) Pump:Water sprinkling truck dedicated pump, 65QSB-50/110,output 50cbm/h.pump lift 110m. High-pressure water gun shoot,gun range 35m Sprinkling scope:14-18m |
|||
| Weight in kg | Kerb weight (Kg) | 10150 | ||
| Gross vehicle weight (Kg) | 25000 | |||
|
Dimension(mm)
|
Dimensions(mm) | Length(mm) | 9860 | |
| Width(mm) | 2550 | |||
| Height(mm) | 3250 | |||
| Wheel base (mm) | 4600 | |||
| Performance | Maximum driving speed (km/h) | 92 | ||
| Fuel consumption (1/100 km) | 35 | |||
| Cab | Model | SINOTRUK HW76 cab | ||
| single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner | ||||
| Engine | Model | WD615.47(Euro 2) | ||
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |||
| Horsepower | 371 | |||
| Maximum output Kw/r/min | 273/2200 | |||
| Maximum torque N.m/r/min | 1350/1100-1600 | |||
| Bore x Stroke | 126x130mm | |||
| Valve | 2 | |||
| Displacement | 9.726L | |||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | |||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||
| Steering | ZF8198 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) | |||
| Front Axle | SINOTRUK HF9 Front Axle,new 7-ton front axles of equipped with drum brakes. | |||
| Rear Axles |
SINOTRUCK HC16 Double Reduction Drive Axle, Pressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles,ratio:4.42;strengthened design, loading capacity and reliability have been increased greatly. |
|||
| Brake System |
Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
|||
| Wheels & Tyres | Rims:10 hole-steel ;Tyres:12.00R20 tubeless tyre with 1 Spare tire. | |||
| Electrics |
Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|||
| Oil Tank | Square type-400L Aluminum alloy fuel tank | |||
