| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO CCC |
| Model Number: | CSC20190906 |
| Engine Capacity: | 140hp | Drive Wheel: | 4x2 |
|---|---|---|---|
| Transmission Type: | Manual | Fuel Type: | Diesel |
| Gross Vehicle Weight: | 16000 | Emission Standard: | Euro 2 |
| Size: | 7350*2500*3125 | Brand Name: | Sinotruk HOWO |
| Highlight: | aircraft refueler trucks,truck mounted concrete pump |
||
HOWO 4x2 140HP 8m³ 5Tons 8 Tons Garbage Waste Compactor Collector Trucks
Product Description
Garbage compactor truck ,also called compactor garbage truck , garbage truck for sale , trash compactor , compression garbage truck , refuse truck , garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks, compactor garbage truck for sale etc
Garbage truck is mainly used in municipal sanitation and large factories and transport all kinds of rubbish, especially suitable for transportation community living garbage
We provide various types of waste collection vehicles such as side loader, refuse compactor, swing-arm garbage truck, arm-roll garbage truck, sealing dump garbage truck, compression docking refuse collector, kitchen waste truck, etc. with different capacities ranging from 3MT to 20MT.
Our Garbage compactor truck advantage :
1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control
2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety
3 Cheap price , one year warranty
4 Garbage bin lifting system could design as customer’s requirement .
5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.
Garbage type as following:
1.There are compactor truck ,swing arm type garbage truck,skip garbage truck ,self- dump garbage truck ,sealed garbage truck ,arm type garbage truck ..etc from our factory
2. with boat type bucket ,squared type bucket ,sealed type bucket , trapezoidal bucket etc.
3.dustbin can separate with truck body,so one truck with more buckets
Product Parameter
| Driving type 4x2 | |||
| 1880 Standard cab, with three seats, with A/C. Left Hand Driven. 70°hydraulically tillable to the front as attached photo for ref. | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6600x2050x2540 | |
| Wheel base (mm) | 3360 | ||
| Wheel track (front/rear) (mm) | 1625/1545 | ||
| Approach/Departure angle(°) | 20/20 | ||
| Weight in KGS | Tare Weight | 4700 | |
| Loading Capacity | 3500 | ||
| Front axles loading capacity | 1x3200 | ||
| Rear axles loading capacity | 1x5000 | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | YUNNEI POWER | |
| Model | YN4102 | ||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 116 HP | ||
| Emission standard | Euro Ⅱ | ||
| Gearbox | WLY6T100 , 6 forwards &1 reverse | ||
| Clutch | Diaphragm spring clutch | ||
| Steering Gear | Power steering | ||
| Fuel tank (L) | 120 L | ||
| Tire | 7.00R16 All radial tires with one spare, 7 pieces | ||
| Compression garbage box body system | |||
| BodyVolume | 5 CBM | ||
| Cycle Time of Filling(S) | ≤30 | ||
| Lifting Time of Filler(S) | 8-10 | ||
| Time of Discharging | ≤50 | ||
| Working Pressure(MPA) | 16 | ||
| Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. | |||

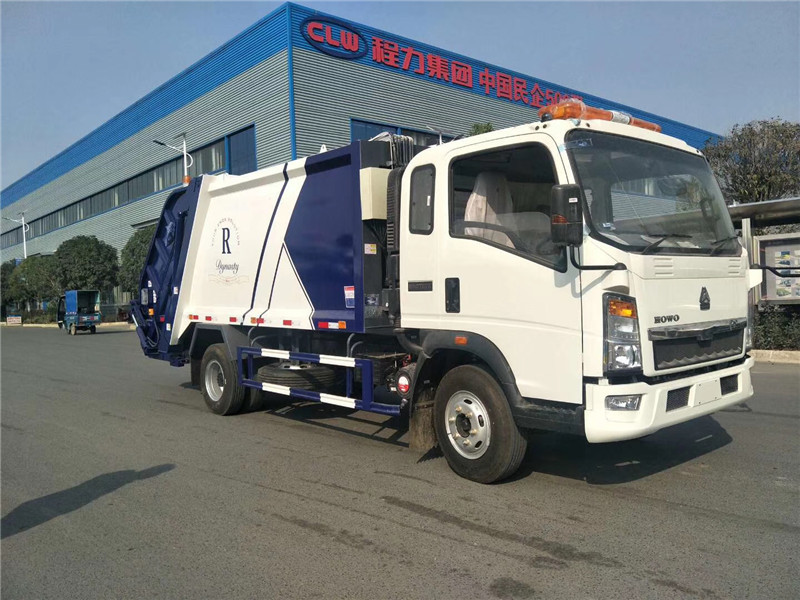

Product Picture
