Name: Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: CSC2019280
Price: negotiable USD
Availability: InStock

Home Products Tanker Truck

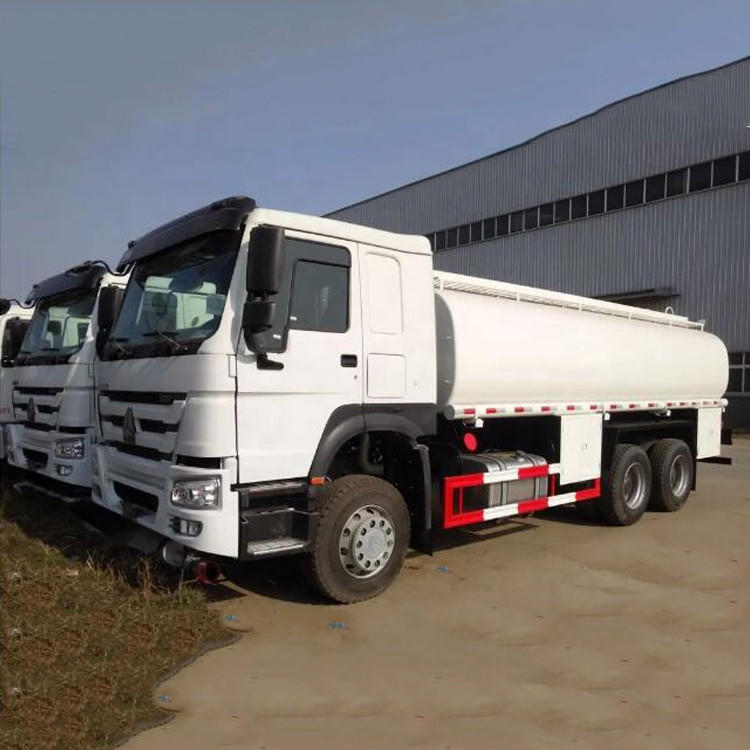

Heavy Duty 20000L 20cbm 6x4 Tanker Truck For Transporting Oil ISO CCC

Product Details:

Place of Origin:	China
Brand Name:	HOWO
Certification:	ISO/CCC
Model Number:	CSC2019280

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiation
Packaging Details:	Nude
Delivery Time:	30-45 work days
Payment Terms:	L/C, T/T
Supply Ability:	300 Unit/Units per Month

Contact Now

Detailed Product Description

Condition:	New	Drive Wheel:	6x4
Transmission Type:	Manual	Tank Volume:	15001 - 30000L
Gross Vehicle Weight:	11030	Storage:	Oil
Horsepower:	351 - 450hp	Fuel Type:	Diesel
Highlight:	fuel tanker trucks , oil tanker truck

Heavy Duty HOWO 20000L 20cbm 6x4 Tanker Truck For Transporting Oil

Product Description

Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.

1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.

2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.

3.Tank shape: Optional for round square, oval, and round;

4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.

5. Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.

Product Parameter

Cabin	Driving type 6x4 LHD
	HOWO 76 Standard cab, with two bunks, one bed, air-condition, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	9500x2496x3600
	Wheel base (mm)	4300+1400
	Wheel track (front/rear) (mm)	2022/1830
	Approach/Departure angle(°)	16/15
Weight in KGS	Tare Weight	11030
	Rated loading Capacity	13840
	Front axles loading capacity	1x7000
	Rear axles loading capacity	2x16000
Max. driving speed(km/h)		90
Engine	Brand	Sinotruk
	Model	WD615.47
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	371HP
	Emission standard	Euro Ⅱ
Gearbox	HW19710, 10 forwards & 2 reverse
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)	400
Tire	295/80R22.5 tubeless tire,
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Tanker Body
Volume	20CBM
Thickness	Tanker body: 5mm, End plate: 6mm
Independent compartment	2 independent compartments
	Aluminum alloy API manhole cover, DN500mm, 2 sets with 2 breather valve
	2 sets of DN100mm discharging valves
	4” rubber hose, 2 pcs, 6m long
