| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | CCC/ISO |
| Model Number: | ZZ1317N4661W |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 25-40 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Drive Wheel: | 8x4 | Size: | 9280*2500*2270 Mm |
|---|---|---|---|
| Tire: | 12.00R20 | Loading Capacity: | 40-50ton |
| Curb Weight: | 16950 | Horsepower: | 251 - 350hp |
| Emission Standard: | Euro 2 | Wheelbase: | 1800+4600+1350 |
| Highlight: | cargo van box truck,cargo transport truck,ZZ1317N4661W cargo truck |
||
12 Wheels 336 hp HOWO Sinotruk Stake Cargo Truck ZZ1317N4661W Euro 2
Product Description
1. Mature truck chassis, it can be widely used for transporting many kinds cargo like bulk cargo, etc.
2. High efficiency, low cost, new technique, low fuel consumption, enduring service life.
3. Easy and safe to load, environmental and sanitary, applicable to collect and remove garbage in the cities, towns and communities.
Product Parameter
|
HOWO STAKE TRUCK |
|||||
|
Dimension(Lx W xH)(unloaded)(mm) |
11984×2500×3970 |
||||
|
Approaching angle/Departure angle(°) |
16/14 |
||||
|
Overhang(front/rear) (mm) |
1500/2734 |
||||
|
Wheel base (mm) |
1800+4600+1350 |
||||
|
Max speed(km/h) |
102 |
||||
|
Curb weight(kg) |
16950 |
||||
|
Engine (Steyr technology, made in China) |
Model |
WD615.69 |
|||
|
Fuel type |
Diesel |
||||
|
Power, max(kw/rpm) |
336HP |
||||
|
Emission |
EUROII |
||||
|
Fuel tanker capacity (L) |
400L |
||||
|
Transmission |
Model |
HW19710 |
|||
|
Steering system |
Model |
ZF8118 |
|||
|
Front axle |
HF9 |
||||
|
Rear axle |
HC16 |
||||
|
Tire |
12.00R20 |
||||
|
Electrical system |
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
||||
|
Starter |
7.5Kw/24V |
||||
|
Cargo Box Specification |
Demension |
9280×2500×2270 mm |
|||
|
Height for side board and stake |
Side board : 800mm Stake : 1470mm |
||||
|
Cab |
HOWO 79 New face cab(two beds,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
||||
Competitive Advantage
1. The price is competitive; we are the direct channel to supply special purpose vehicles.
2.Powerful engine and reinforced axle
3. All colors are available according to your choice.
4. Fast production period, and quick arrangement of delivery.
5. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
6. Professional team for spare parts and aftersales services.
7. Technique support and training.
8. Customization service, as per your request, we will customize our production for you.

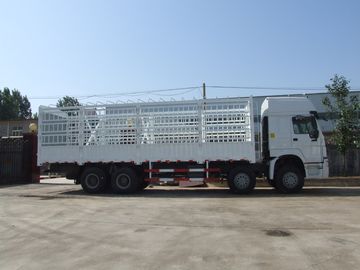

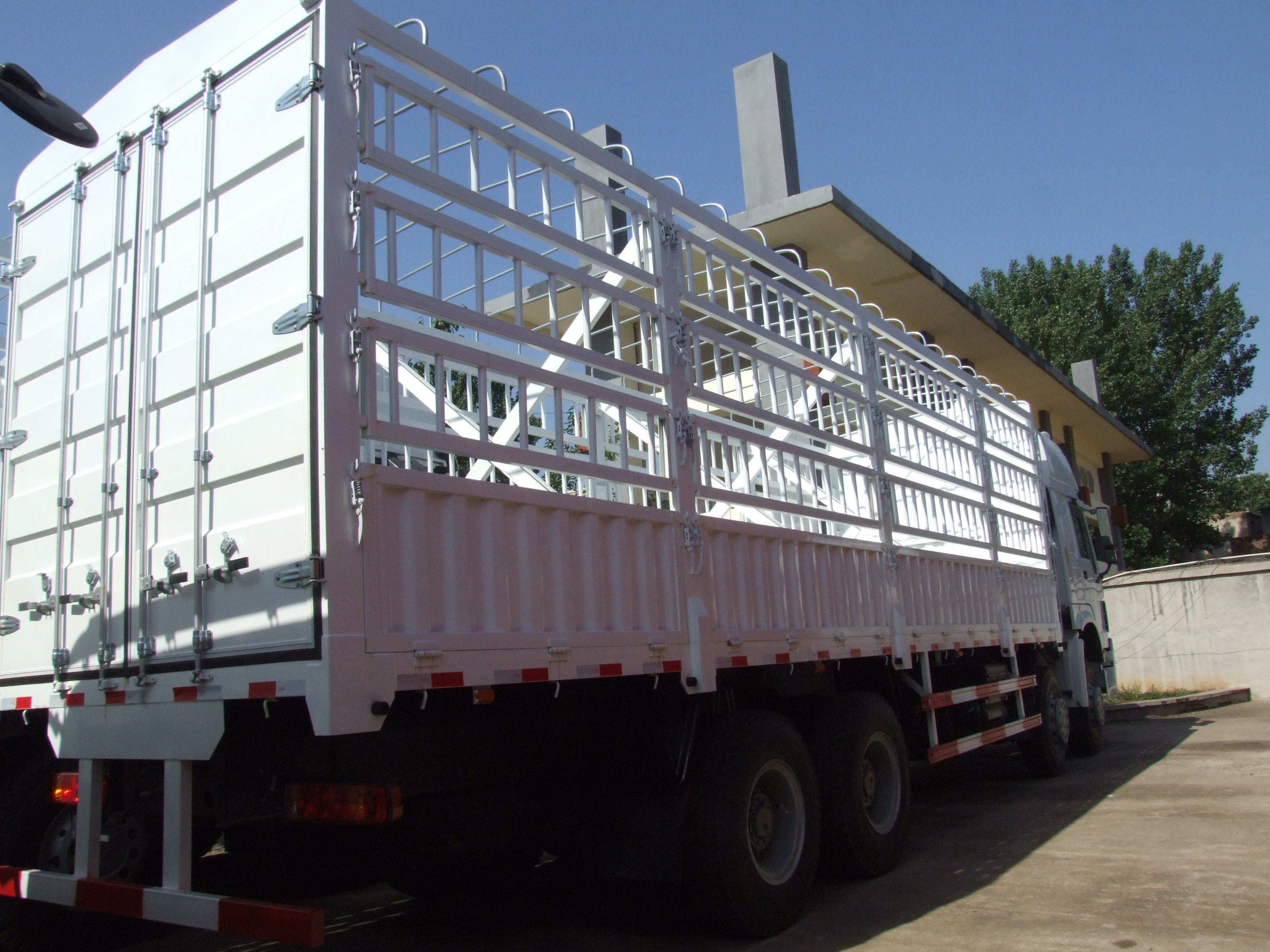

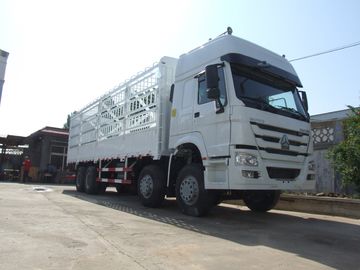

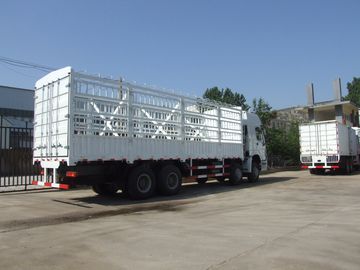

Product picture
