Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | XCMG |
Certification: | ISO CE |
Model Number: | zl50gn |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | NEGOTIABLE |
Packaging Details: | SDLG standard package |
Delivery Time: | 30DAYS |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 Unit/Units per Year SDLG RS8140 Road Machinery new road roller machine price |
Hydraulic Pump Brand: | XCMG | Engine Brand: | DEUTZ |
---|---|---|---|
Power(W): | 162 KW | Operating Weight: | 18000kg |
Dumping Clearance: | 3230mm | Dimension(Long * Breadth * High): | 8110*3000*3508mm |
Highlight: | dirt moving equipment,earth digging equipment |

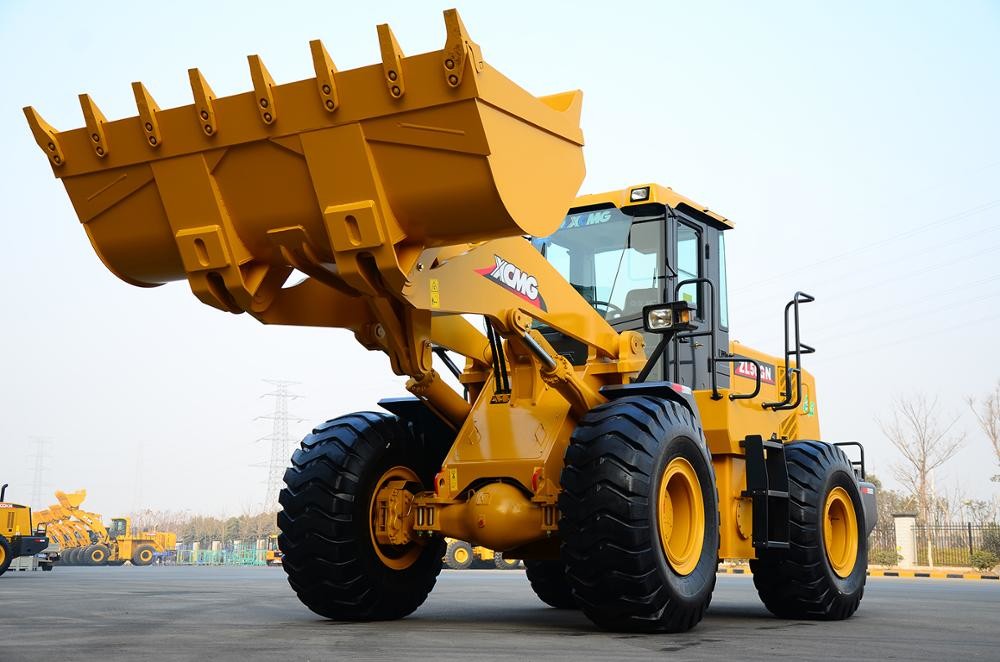

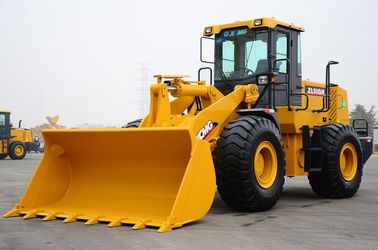

Heavy Earth Moving Machinery China Brand Wheel Loader XCMG 5 Ton Wheel Loader
Machine Weight:17500kg
Dimension(Long * Breadth * High):8110*3000*3508mm
Warranty:1 Year
After-sales Service Provided:Video technical support, Online support
Applicable Industries:Manufacturing Plant, Farms, Construction works , Energy & Mining
Condition:New
Brand Name:XCMG
Place of Origin:Jiangsu, China
Type:Front Loader
Moving Type:Wheel Loader
Certification:CE ISO
Hydraulic Cylinder Brand:XCMG
Hydraulic Pump Brand:XCMG
Hydraulic Valve Brand:XCMG
Engine Brand:DEUTZ
UNIQUE SELLING POINT:
Long lifetimePower(W):162 KW
Bucket capacity:2.5~4.5M3
Operating weight:18000kg
Dumping reach:1845mm
Dumping clearance:3230mm
Wheel base:3300mm
FEARTURES
Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
The large rock bucket with capacity of 3.0m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
The strong breakout force of 17 ton and strong traction of 17.5 ton ensure that the machine could adapt to various tough condition.
Reliable operation: with the long wheelbase of 3300mm and long machine body of 8185mm, the machine is ahead in the industry in terms of the operation reliability.
Quick action: the total time of three devices is only 10.3s, and the speed is 11.5 km/hour during the operation.
Strong adaptation to the work site: centered design, small turning raidus. No speed difference between front and rear wheels. The tyre is not easily worn.
Great strength
Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.
12-ton strong tilt drawing force guarantees the outstanding adaptation to various tough conditions.
7-ton strong boom lifting force ensures various operation methods of high intensity.
High efficiency
The adopted 125 work pump features large displacement, strong oil supply, and the total time of three devices is only 10.3s.
The turning radius is only 5420mm, short running distance, fast loading speed, saving the fuel and high efficiency.
Single pump distribution, load-sensing steering, large flow, enough power, simple and high efficiency.
High strength
Heavy load design. The front and rear frames adopt box type, featuring thickness and high intensity.
The key structural parts adopt finite-element analysis, ensuring the adaptation to various dangerous working conditions.
Long service life
The key articulated positions feature two-stage dust-proof, less abrasion and longer service life.
Wear resistant blade and bucket teethfeature longer service life.
The hydraulic pipe adopts 24° cone and O ring, settling the issue of leakage.
Easily worn oil pipe is equipped with the protective bush, prolonging the service life.
High factor of full bucket
Long bucket bottom, sharp bucket type, easily cutting in, much material.
Lessen the opening angle, reduce the section, easily push in and lift.
Convenient maintenance
The independent chamber design of the hydraulic oil tank return circuit guarantees the conveninence of the maintenance.
The hood adopts the large side door of sliding upward, featureing large opening angle, and more convenient for access.
The classic dead axle transmission features maturity, stability, and easy maintenance. The parts are easy to replace.
Comfortable operation
The cab features luxury decoration, large space and excellent visibitity.
The adjustable seat features comfortability and elegance.
Key breakthrough in the leading level of the industry.
starts the vehicle manufacturing technology first in China; including metal cover part and electrophoretic coating, and featuring high residual value.
PARAMETER
Product pictures
