Name: Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: ZZ1317N3867A
Price: negotiable USD
Availability: InStock

Home Products Heavy Cargo Truck

Manual Transmission Howo Cargo Truck 8x4 Euro 2 Emission 371hp Engine ZZ1317N3867A

Product Details:

Place of Origin:	China
Brand Name:	HOWO
Certification:	CCC/ISO
Model Number:	ZZ1317N3867A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Nude
Delivery Time:	25-40 work days
Payment Terms:	L/C, T/T
Supply Ability:	300 Unit/Units per month

Contact Now

Detailed Product Description

Drive Wheel:	8x4	Transmission Type:	Manual
Fuel Type:	Diesel	Size:	8650x2300x2200mm
Engine:	WD615.69	Batteries:	2*12, 165Ah
Capacity (Load):	21 - 30t	Horsepower:	351 - 450hp
Highlight:	cargo van box truck , cargo transport truck

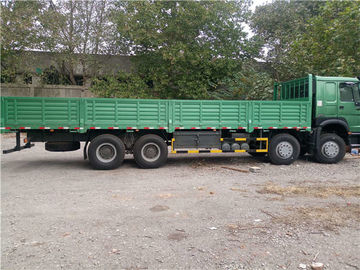

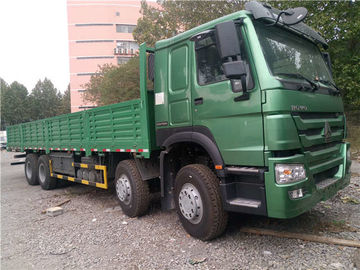

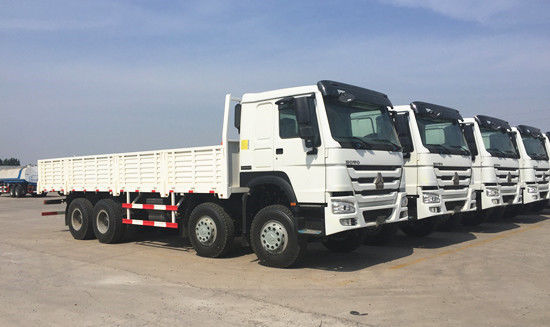

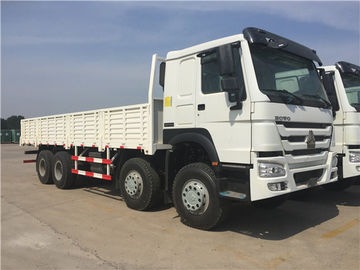

HOWO Cargo Truck 8x4 Euro2 Emission 371hp Engine ZZ1317N3867A

Technical Features

Typical truck model		ZZ1317N3867A	ZZ1317N4667A
Cab	Model	HW76
	Type	HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt.
Engine	Model	WD615.69	WD615.47
	Rated power	336HP(247Kw/rpm)	371HP(273Kw/rpm)
	Displacement	9.726L
	Type	6 cylinder in-line with water cooling, turbo-charging & intercooling
Wheelbase		1800+3800+1400mm	1800+4600+1400mm
Cargo body size		8650x2300x2200mm	9500x2300x2200mm
Clutch		Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance
Transmission		SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse
Front axle		Steering axle with double T-cross section HF7/HF9
Drive axle		Pressed axle housing, central single reduction ST16/MCY(Q)/HC16/AC16 Ratio:3.93 4.42 4.8 5.73
Chassis		Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel Aluminum fuel tank: with 400 L fuel tank with locking fuel cap
Steering		Germany ZF, hydraulic steering with power assistance
Brakes		Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS
Wheel & Types		Rims: 8.0-20, 10 hole-steel Types 11.00-20 tube; Option: 12.00-20 tube, 12.00R20 tube
Electrics		Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
