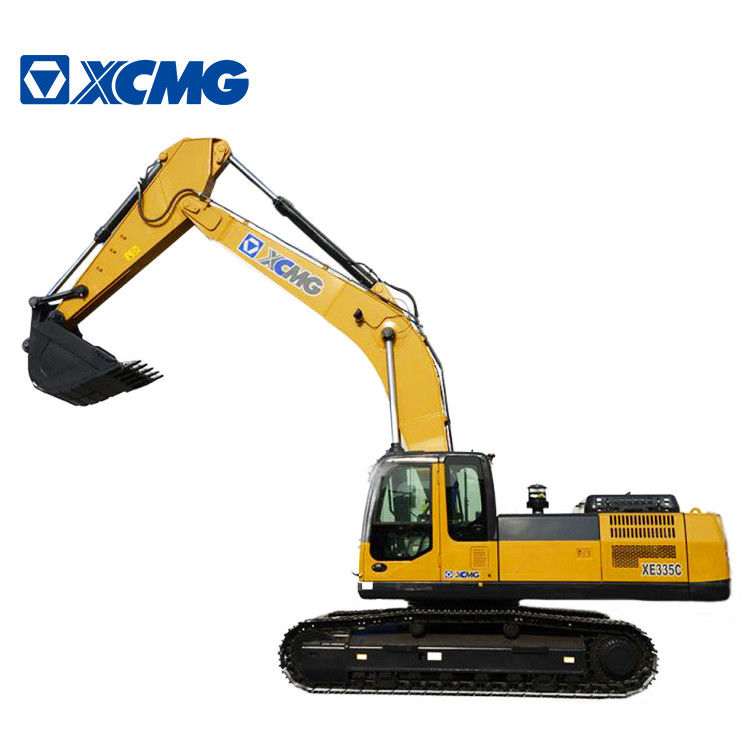

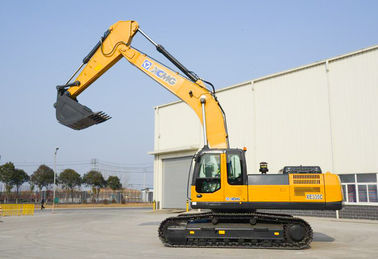

Name: XCMG XE335C Heavy Construction Machinery Hydraulic Isuzu Engine Excavator
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: XE335C
Price: negotiable USD
Availability: InStock

Home Products Heavy Earth Moving Machinery

XCMG XE335C Heavy Construction Machinery Hydraulic Isuzu Engine Excavator

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	XCMG
Certification:	CE/ISO9001
Model Number:	XE335C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	nude
Delivery Time:	10-30days
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets/year

Contact Now

Detailed Product Description

Operating Weight:	33800kg	Maximum Digging Depth:	6972mm
Maximum Digging Height:	10074mm	Engine Output Power:	190.5 Kw
Max Digging Radius:	4424mm	Engine Brand:	ISUZU
Highlight:	dirt moving equipment , earth digging equipment

XCMG Official XE335C rc Manufacturer Hydraulic Excavator / Heavy Construction Machinery

Product Quick Details:

Bucket capacity:1.4m3

Operating Weight:33800kg

Rated Speed:5.5km/h

Warranty:1 Year

After-sales Service Provided:Video technical support, Online support, Engineers available to service machinery overseas

Applicable Industries:Manufacturing Plant, Farms, Construction works , Energy & Mining

Place of Origin:Jiangsu, China

Brand Name:XCMG

Condition:New

Moving Type:Crawler Excavator

Maximum Digging Height:10074mm

Maximum Digging Depth:6972mm

Max Digging Radius:4424mm

Certification:CE/ISO9001

Hydraulic Cylinder Brand:XCMG

Hydraulic Pump Brand:XCMG

Hydraulic Valve Brand:XCMG

Engine Brand:ISUZU

UNIQUE SELLING POINT:Environmental,Energy-saving,Large power engine

Power(W):190.5 kw

Engine output power:190.5 kw

Max. traction:261 kN

Gradeability:35%

Bucket digging force:289 kN

Crawler gauge:2590mm

Product Features:

1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

5.The original ISUZU engine provides powerful performance and low fuel consumption,applied with the most optimized matching system.
6. Advanced energy-saving Kawasaki hydraulic system.
7.New luxury and comfortable cab system with large space is designed on the basis of ergonomic concept.
8. Heavy load and strengthening type boom and arm can guarantee the powerful digging force under poor working conditions.
9. Optional break hammer and pipeline,quick coupler,cab fence,traveling alarm and rotary warning lights are available.

Product Specification:

XE335C	Unit	Parameter value
Operating weight	kg	33800
Bucket capacity	m³	1.4
Model	Engine	AA-6HK1XQP
No. of cylinders	---	6
Output power	kW/ r/min	190.5/2000
torque/speed	N.m	872.8/1700
Displacement	L	7.79
Travel speed(H/L)	km/h	5.5/3.3
Rotating speed	r/min	9.7
Gradeability	°	≤35
Ground pressure	kPa	66
Bucket digging force	kN	263
Arm digging force	kN	225
Maximum traction	kN	261
Main pump	--	2
Rated flow of main pump	L/min	2×280
Fuel tank capacity	L	630
Hydraulic tank capacity	L	350
Engine oil capacity	L	28
Overall length	mm	11388
Overall width	mm	3190
Overall height	mm	3515
Width of platform	mm	2950
Length of crawler	mm	4725
Overall width of chassis	mm	3190
Width of crawler	mm	600
Wheel base of crawler	mm	3183
Min. tail swing radius	mm	3570
Max. digging height	mm	10074
Max. dumping height	mm	6898
Max. digging depth	mm	6972
Max. digging depth at the range of level 8 feet	mm	6728
Max. vertical wall digging depth	mm	5366
Max. digging reach	mm	10650
Min. swing radius	mm	4424
Length of boom	mm	6400
Length of arm	mm	2670
Bucket capacity	m³	1.4
Length of arm	m³	2900
Bucket capacity	m³	1.6 /1.4
