| Place of Origin: | Shandong，China |
| Brand Name: | BINZUAN |
| Certification: | ISO9001 |
| Model Number: | BZT1500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Condition: | New | Model Number: | BZT1500 |
|---|---|---|---|
| Voltage: | 220V/380V | Drill Depth: | 1000-1500m |
| Type: | Trailer Mounted | Dimension(L*W*H): | 15222*2800*4400mm |
| Highlight: | pile driving equipment,borehole drilling machine |
||
BZT1500 Trailer mounted water well drilling rig is new designed drilling machinery by our factory.The drill rig design is reasonable designed, completely equipped, superior performance, can do more drilling technology eg. Mud cycle, air foam drilling, pneumatic DTH hammer, air reverse circulation drilling etc. So the drilling rig can suitable for clay bed, sand layer,decomposed rock,bed rock etc different kind of stratum.
Character
1. The rig is direct circulation rotary drilling rig, with full trailer chassis,equipped steel off road tires.
2. An independent diesel engine ,strong power.
3. With double winches, high lifting power, three-speed, improved the working efficient.
4. With four hydraulic legs, two mechanical legs, double locked,even if the tanks leak, the chassis will not be unstable.
5. The tower adopt inside and outside extendable structure,controlled by hydraulic oil cylinder.
6. Equipped with 50KW generator, convenient for customers.
The parameter and main component
| Technical parameters | |||||
| Rotary table | Inner diameter: 660mm | ||||
| Drilling depth(m) | 1500m | 1200m | 1000m | ||
| Pipe model(mm) | φ89 | φ114 | φ127 | ||
| The speed of turntable(rpm) | 153,89,55,39 | ||||
| The max. torque of turntable(kn·m) | 22 | ||||
| Hoist | Main hoist | Single rope lifting capacity of main hoist:90kN | |||
| Single rope speed of main hoist: 0.84, 1.90, 3.3m/s | |||||
| Wire rope diameter: D-6×19 φ28mm | |||||
| Assistant hoist | Single rope lifting capacity of main hoist: : 50kN | ||||
| Wire rope diameter: D-6×19 φ20mm | |||||
| Diesel engine | Model | NTA855-C360 | |||
| Rated speed(r/min) | 2100 | ||||
| Power(kw) | 269 | ||||
| Drilling tower | Effective height(m) | 16.5 | |||
| Bearing capacity(t) | 60 | ||||
| Kelly pipe(mm) | 108×108×12500 | ||||
| Hook | Bearing capacity(t) | 60 | |||
| Mud pump | Model | BW1200/7 | |||
| Pressure(Mpa) | 7.0 | ||||
| Theory of flow (L/min) | 1200 | ||||
| Piston stroke(mm) | 270 | ||||
| Piston diameter(mm) | 160 | ||||
| Transport size(mm) | 15230×2790×4345 | ||||
| Working size(mm) | 15222×3800×20265 | ||||
| Speed | 20 Km/h | ||||

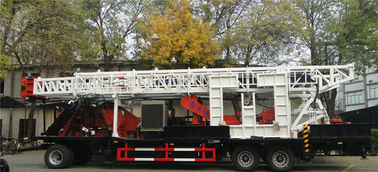

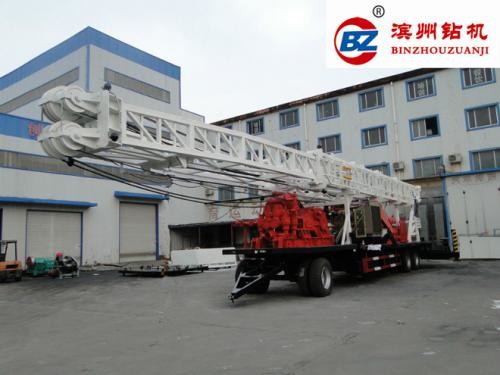

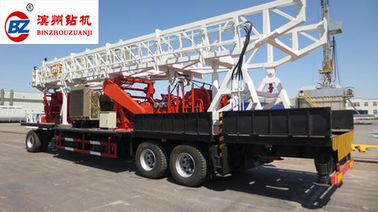

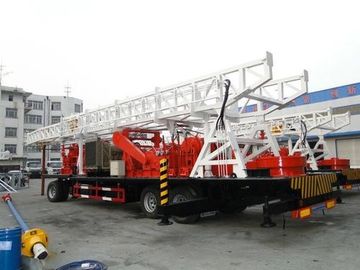

Product Pictures
