| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO CCC GCC CE |
| Model Number: | ZZ4257N3247W1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Set/Sets per month |
| Condition: | New | Horsepower: | 351 - 450hp |
|---|---|---|---|
| Drive Wheel: | 6x4 | Emission Standard: | Euro 2 |
| Engine Capacity: | > 8L | Fuel Type: | Diesel |
| Size: | 6800 X 2496 X 2958 | Engine: | WD615 |
| Highlight: | diesel tractor truck,tractor head truck |
||
Sinotruk HOWO 6x4 420 hp Tractor Trailer Truck Euro 2 Optional Color
Product parameter
|
Vehicle series
|
HOWO 6x4 420 hp tractor truck
|
||
|
cab
|
HW76
|
||
|
Engine
|
Model
|
Euro 4:WD615/D12
|
|
|
Power(Ps/rpm)
|
(213-273)/2200 309/2000
|
||
|
Maximum torque(Nm/rpm)
|
(1160-1500)/1100-1600,1820/1100-1500
|
||
|
Displacement(L)
|
9.726/11.596
|
||
|
Transmission
|
SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft ,auxiliary transmission with planetary reduction. WD615.87standardHW15710,WD615.69,WD615.47,D12.38 and D12.42standardHW19710
|
||
|
Clutch
|
Φ430diaphragm spring Clutch,Hydraulic control air assisted. WD615.47,D12.38 and D12.42Engine standard430A,WD615.69standard430B , WD615.87standard430C
|
||
|
Front axle
|
HF7,rated load of 7t, drum-type;heavy load truck with HF9 drum-type, rated load of 9t
|
||
|
Rear axle
|
ST16 double reduction, speed ratio:3.93,4.42,4.8;heavy load truck with HC16 double reduction, speed ratio:4.8, 5.73
|
||
|
Steering gear
|
ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa
|
||
|
Suspension
|
Steer Axle
|
front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer
|
|
|
Drive Axle
|
front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer.
|
||
|
Braking system
|
Service brake
|
dual-circuit air pressure brake
|
|
|
Parking brake
|
spring storage energy without air
|
||
|
Auxiliary brake
|
Engine exhaust braking;standardABS,Engine EVB is Optional and optional auto clearance adjusting arm
|
||
|
Electric system
|
Voltage
|
24v
|
|
|
Generator
|
1540w
|
||
|
Batteries
|
12v/165Ah,2pieces
|
||
|
Starter Power
|
24v.7.5kw
|
||
|
Wheels & Tyres
|
Tyres
|
315/80R22.5
|
|
|
Optional
|
12.00R20; 12R22.5
|
||
|
Fuel Tank
|
Capacity
|
400 Liter 260L auxiliary fuel tank can be added
|
|
|
weight(kg)
|
Curb weight
|
9180/9230
|
|
|
Gross Vehicle weight
|
25000
|
||
|
Design loading capacity at fifth wheel
|
15640-15690
|
||
|
Vehicle Dimensions (mm)
|
L*H*W
|
6800×2496×2958
|
|
|
Wheelbase
|
3200+1350
|
||
|
Front overhang/Rear overhang
|
1500/725
|
||
|
Wheel track of front axle
|
2022
|
||
|
Wheel track of rear axle
|
1850
|
||
|
Performance
|
Maximum speed(km/h)
|
92/102
|
|
|
Maximum gradeability(%)
|
20
|
||
|
Minimum turning diameter(m)
|
15
|
||

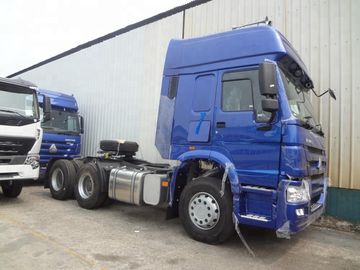

Product picture
