| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | XCMG |
| Certification: | CE/ISO9001 |
| Model Number: | XE215C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | nude |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets/year |
| Operating Weight: | 21900kg | Bucket Capacity: | 0.9-1.0CBM |
|---|---|---|---|
| Rated Speed: | 5.5/3.3 Km/h | Maximum Digging Depth: | 6680mm |
| Maximum Digging Height: | 9620mm | Max Digging Radius: | 9940mm |
| Engine Brand: | ISUZU | ||
| Highlight: | dirt moving equipment,earth digging equipment |
||

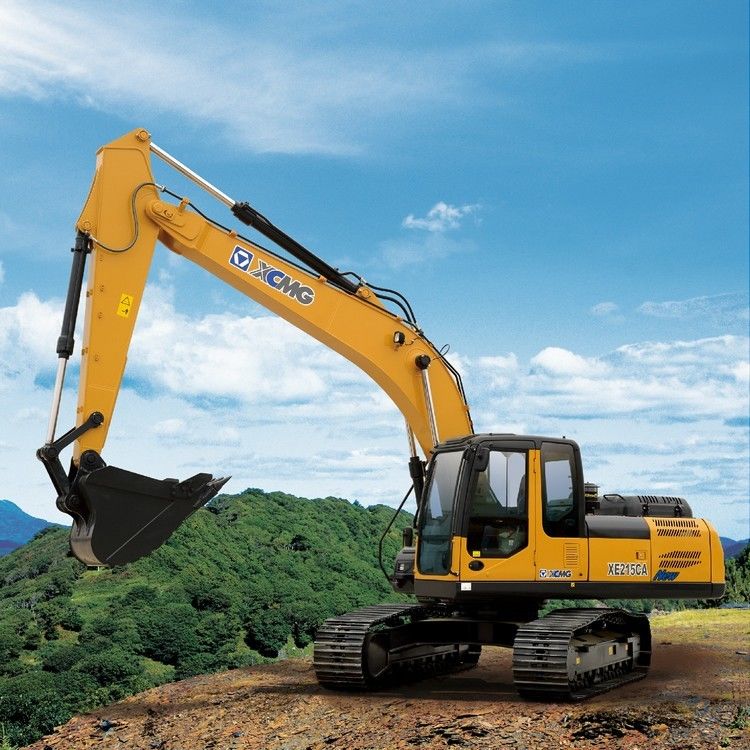

XCMG ManufacturerXE215C 21.5ton Hydraulic Crawler Excavator Heavy Construction Machinery Heavy Mobile Equipment
Product Quick Details:
Bucket capacity:0.9-1.0CBM
Operating Weight:21900kg
Rated Speed:5.5/3.3 km/h
Warranty:1 Year
After-sales Service Provided:Video technical support, Online support
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops,
Place of Origin:Jiangsu, China
Brand Name:XCMG
Condition:New
Moving Type:Crawler Excavator
Maximum Digging Height:9620mm
Maximum Digging Depth:6680mm
Max Digging Radius:9940mm
Certification:CE/ISO9001
Hydraulic Cylinder Brand:XCMG
Hydraulic Pump Brand:XCMG
Hydraulic Valve Brand:XCMG
Engine Brand:ISUZU
UNIQUE SELLING POINT:Long lifetime
Power(W):128.5km
Product Features:
XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced, and fuel consumption is reduced by 10% or less compared to previous generation of machine.
With independently developed intelligent study-type control system in XE215C series, it can be matched efficiently and reasonably so that the resistance of hydraulic oil return system is greatly decreased, working efficiency reaches above 15% (compared with old model XE215C), which has the highest earthwork efficiency among similar models.
1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
5.The original ISUZU engine provides powerful performance and low fuel consumption,applied with the most optimized matching system.
6. Advanced energy-saving Kawasaki hydraulic system.
7.New luxury and comfortable cab system with large space is designed on the basis of ergonomic concept.
8. Heavy load and strengthening type boom and arm can guarantee the powerful digging force under poor working conditions.
9. Optional break hammer and pipeline,quick coupler,cab fence,traveling alarm and rotary warning lights are available.
Product Specification:
| Model | Parameters | |
| Engine | Model | ISUZU CC-6BG1TRP |
| Equipped | Electronic fuel injection | |
| Four strokes | ||
| Water cooling | ||
| Turbo-charging | ||
| Air to air intercooler | ||
| No. of cylinders | 6 | |
| Output power | 128.5/2100 kW/rpm | |
| Torque/speed | 637/1800 N.m/rpm | |
| Displacement | 6.494 L | |
| Operation Weight | 21900 kg | |
| Bucket Capacity | 0.9—1.0 m ³ | |
| Main performance | Travel speed(H/L) | 5.5/3.3 km/h |
| Rotating speed | 13.3 r/min | |
| Gradeability | ≤35° | |
| Ground pressure | 47.2 kPa | |
| Bucket digging force | 149 kN | |
| Arm digging force | 111 kN | |
| Maximum traction | 184 kN | |
| Hydraulic system | Main pump | 2 plunger pumps |
| Rated flow of main pump | 2×209 L/min | |
| Pressure of prime valve | 34.3/37.0 Mpa | |
| Pressure of travel system | 34.3 Mpa | |
| Pressure of swing system | 28 Mpa | |
| Pressure of pilot system | 3.9 Mpa | |
| Oil capacity | Fuel tank capacity | 400 L |
| Hydraulic tank capacity | 220 L | |
| Engine oil capacity | 25 L | |
| Appearance size | Overall dimensions(L*W*H) | 9625×2990×3100 mm |
| Width of platform | 2830 mm | |
| Length of crawler | 4225 mm | |
| Overall width of chassis | 2990 mm | |
| Width of chassis | 600 mm | |
| Track length on ground | 3462 mm | |
| Crawler gauge | 2390 mm | |
| Clearance under counterweight | 1050 mm | |
| Min. ground clearance | 485 mm | |
| Min. tail swing radius | 2890 mm | |
| Working scope | Max. digging height | 9620 mm |
| Max. dumping height | 6780 mm | |
| Max. digging depth | 6680 mm | |
| Excavation depth of 8 feet level | 6500 mm | |
| Max. vertical wall digging depth | 5715 mm | |
| Max. digging reach | 9940 mm | |
| Min. swing radius | 3530 mm | |
| Standard | Boom length | 1680 mm |
| Arm length | 2910 mm | |
| Bucket Capacity | 1.0 m ³ | |
| Optional | Arm length | 5680 mm |
| Bucket Capacity | 1.0 Earth working bucket | |
| 0.9 Rock bucket | ||
