| Place of Origin: | China |
| Brand Name: | XCMG |
| Certification: | CE ISO |
| Model Number: | XR180D |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per month |
| Condition: | New | Power Type: | Diesel, Electric |
|---|---|---|---|
| Voltage: | 220V/380V | Weight: | 58000kg |
| Max. Drilling Diameter: | 1800mm | Usage: | Coal |
| Dimension(L*W*H): | 14255*3000*3455mm | Max. Drilling Depth: | 46m |
| Highlight: | pile driving equipment,borehole drilling machine |
||
XCMG Borehole Drilling Machine XR180D Rotary Drilling Hydraulic 58000kg
Product description
1,With the special hydraulic telescopic crawler chassis (TDP series) ofrotary drill rig and large diameter slewing bearing, it meets strong stabilityand easy transportation.
2,With the electronically controlled and turbocharged engine ,which is powerful and emissions meet Euro Ⅲ standards.
3,The hydraulic system adopts the limit of power control and positive flowcontrol, that makes the hydraulic system more energy and efficient.
4,With the single rope main winch, it efficiently solves the problemof wire rope wear, and improves the service life of wire rope; a detectiondevice of drilling depth on the main winch, and single rope makes deepinspection more accuracy.
5,The design of whole machine meets the requirements of the CEdirective, that guarantees safety, and construction safer.
6,Configure centralized lubrication system, which makes maintenancemore convenient.
7,Selection of a variety of specifications for Kelly-bar, meeting the efficient construction ofdifferent strata.
8,Multi-function such as crowd winch,spin-offof rotary drive,casing driver and hydraulic casingoscillator is optional selected.
9,The removable type key. Of rotary drive makes maintenance andexchange more convenient.
Product parameter
|
Main parameters as below, customerized equipment according to your work condition is acceptable.
|
|||
|
Description
|
Unit
|
Parameter value
|
|
|
Max. drilling diameter
|
mm
|
1800
|
|
|
Max. drilling depth
|
m
|
standard configuration (5-section friction Kelly bar)46,
|
|
|
optional configuration (4-section-locking Kelly bar)
|
|||
|
Allowable luffing scope (from center of drill rod to slewing center)
|
mm
|
3560~3900
|
|
|
Drilling rig dimension in working condition (L × W × H)
|
mm
|
8350×4200×20480
|
|
|
Drilling rig dimension in transport condition (L × W × H)
|
mm
|
14255×3000×3455
|
|
|
Weight of overall unit (standard configuration, excluding drilling tool)
|
t
|
58
|
|
|
Engine
|
Model
|
|
QSB6.7
|
|
Rated power/speed
|
kW
|
194/(2200r/min)
|
|
|
Max. working pressure of hydraulic system
|
MPa
|
35
|
|
|
Rotary drive
|
Max. torque
|
kN •m
|
180
|
|
Rotational speed
|
r/min
|
7~27
|
|
|
Crowd cylinder
|
Max. Pushing force
|
kN
|
160
|
|
Max. Pulling force
|
kN
|
180
|
|
|
Max. stroke
|
mm
|
5000
|
|
|
Main winch
|
Max. pulling force
|
kN
|
180
|
|
Max. single-rope speed
|
m/min
|
65
|
|
|
Diameter of the steel wire rope
|
mm
|
180
|
|
|
Auxiliary winch
|
Max. pulling force
|
kN
|
50
|
|
Max. single-rope speed
|
m/min
|
70
|
|
|
Diameter of the steel wire rope
|
mm
|
16
|
|
|
Drilling mast
|
Left/right inclination of mast
|
°
|
43527
|
|
Front/back inclination of mast
|
°
|
43600
|
|
|
Rotary table slewing angle
|
°
|
360
|
|
|
Traveling
|
Max. traveling speed of the overall unit
|
km/h
|
1.5
|
|
Max. climbable gradient of the overall unit
|
%
|
35
|
|
|
Crawler
|
Width of crawler plate
|
mm
|
700
|
|
External width of crawler (min.-max.)
|
mm
|
2960~4200
|
|
|
Center distance between two longitudinal wheels of crawler
|
mm
|
4270
|
|
|
Average ground pressure
|
kPa
|
94
|
|

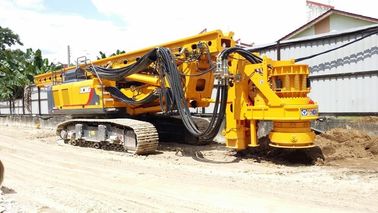

Product picture
