| Place of Origin: | China |
| Brand Name: | XCMG |
| Certification: | CE |
| Model Number: | XC6-3006K |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
| Machine Weight: | 6990kg | Engine Brand: | Weichai |
|---|---|---|---|
| Power(W): | 70kW | Dimension(Long * Breadth * High): | 4620*2355*2415mm |
| Hydraulic Pump Brand: | Xcmg | Rated Load: | 3t |
| Lifting Height: | 6200 Mm | Model Number: | XC6-3006K |
| Highlight: | dirt moving equipment,earth digging equipment |
||
Chinese XCMG XC6-3006K 6m Telescopic Handler 3 Ton Wood With WEICHAI Engine
Product description
Product Overview
XC6 is the latest XCMG' agricultural version telehandler which features the highest operation simplicity, safety and efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
Characteristics
The panoramic cab and the XCMG's visual identity appearance design feature good fashion and elegance.
With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.
Product parameter
|
Description
|
Unit
|
XC6-3006K
|
|
|
Engine Power
|
kW
|
90
|
|
|
Overall weight
|
kg
|
6990
|
|
|
Overall dimensions
|
mm
|
4620×2355×2415
|
|
|
Maximum traveling speed
|
km/h
|
35
|
|
|
Turning radius
|
mm
|
≤4020
|
|
|
Maximum effective load
|
kg
|
3000
|
|
|
Effective load at maximum extending length
|
kg
|
2000
|
|
|
Maximum lifting height (±100)
|
mm
|
6200
|
|
|
Maximum forward reach (±100)
|
mm
|
2990
|
|
|
Center distance of load
|
mm
|
500
|
|
|
Luffing angle (±1º)
|
°
|
-3~65
|
|
|
Inclination of fork carrier
|
°
|
-90~18
|
|
|
Maximum traction force
|
KN
|
≥55
|
|
|
Wheelbase (±2%)
|
mm
|
2850
|
|

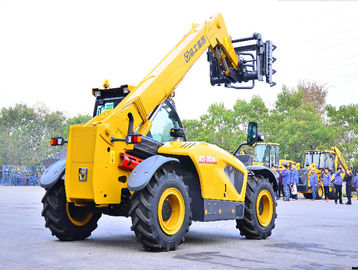

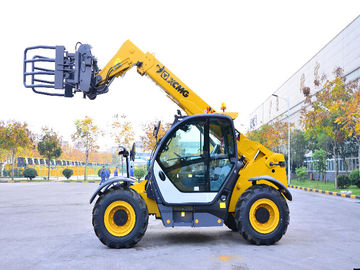

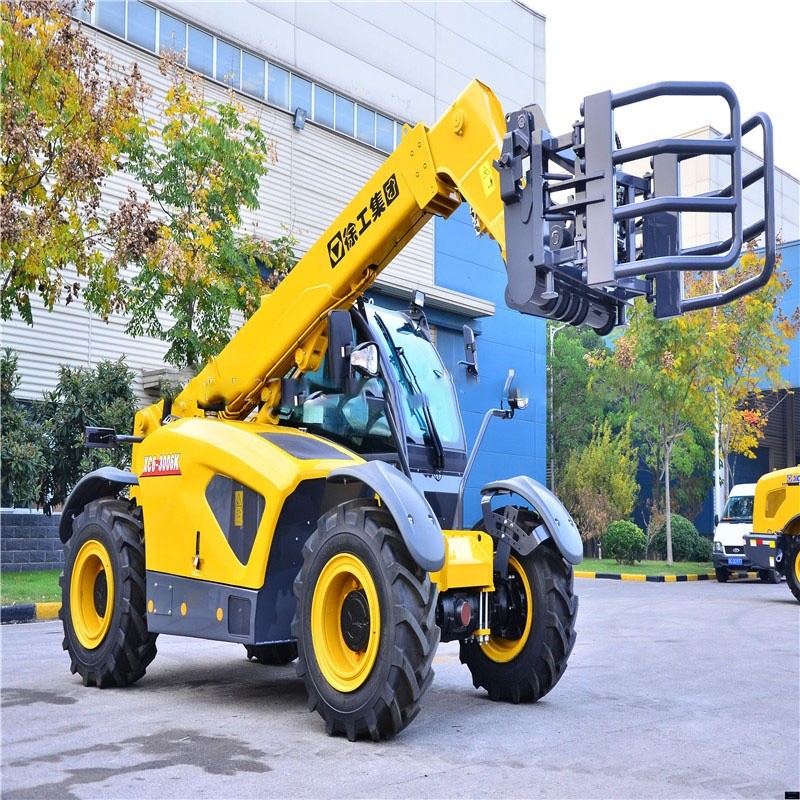

Product picture
