| Place of Origin: | Shandong，China |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ3317M3267 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Drive Wheel: | 8X4 | Horsepower: | 251-350hp |
|---|---|---|---|
| Emission Standard: | Euro 2 | Transmission Type: | Manual |
| Engine Capacity: | >8L | Color: | Optional |
| Fuel Type: | Diesel | Keywords: | Dump Truck |
| Highlight: | heavy duty tipper trucks,sand dump truck |
||
Product Description

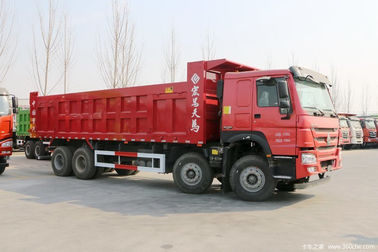

| SINOTRUK HOWO 8X4 DUMP TRUCK LHD / RHD | ||
| Model | ZZ3317M3267 | Driving type: 8x4 |
| Cabin | HW76 lengthened cab, basic equipment: one sleeper, new-style seat, adjustable safety steering wheel, EURO new type heating & ventilating system; with large size LCD screen, Germany VDO instrument and electric control block, four points floating air suspension(front coil spring, rear air spring) and shock absorbers for highway vehicle, four points floating air spring suspension and shock absorbers for off-highway vehicle; transverse stability installation, double locking safety belt and external sun shade for various mode. | |
| Engine | Horse power: | 266HP(196KW) / 300HP(213KW) |
| Displacement: | 9.726 (L) liter | |
| Max torque: | 1100Nm / 1160Nm at 1100-1600 rpm | |
| Cylinder diameter / stoke: | 126mm/130mm | |
| WD615.62 / WD615.87 diesel engine, EURO 2 emission standard. 6 cylinder in-line with water cooling, turbo-charging & inter-cooling. 4 stroke direct injection diesel engine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Rated revolution: 2200RPM. Engine net weight: 850KG | ||
| Gear box | Model: | HW13710 / HW15710 |
| Speed: | 10drive, 2reverse. Max torque: 1390NM / 1500NM | |
| HW15710 SINOTRUK10 speed manual type transmission, the first shift gear ratio: 14.28, small ratio grade difference and big first shift ratio produce an excellent performance on start up. Gear ratio:1=14.28, 2=10.62, 3=7.87, 4=5.88, 5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18 | ||
| Front axle | 2×HF9, 18 ton axle load, rigid stub axle with double T- cross section and dish brake. | |
| Rear axle |
2xAC16 double heavy casting hub reduction drive axle, with supper loading ability, excellent performance on start-up with heavy load and slope climbing .Axle load: 2x16 tons. |
|
| Steering | ZF8098 power steering, hydraulic steering with power assistance. | |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. | |
| Brake | Service brake: Dual circuit compressed air brake. | |
| Parking brake: Spring energy, storage air-break brake. | ||
| Engine brake: Engine exhausted gas brake. | ||
| Electric Equipment | Operating voltage: | 24V negative grounded |
| Battery voltage: | 12V/165Ah,cigar lighter | |
| Tire & Rim | 11.00-20; 12.00-20; 11.00R20; 12.00R20; 295/80R22.5; 315/80R22.5 | |
| Overall dimension (mm) | 9,725 / 9,445 X 2,496 X 3,450 (L X W X H) | |
| Dump Box Dimension (mm) | 6,500 X 2,300 X 1,200 / 1,400 / 1,500 | |
| Total Mass (Kg) | 31,000 | |
| Curb Weight (kg) | 15130/15360 | |
| Maximum Speed (km/h) | 75 | |
| Color | White, red, yellow, green, blue | |
Product pictures
Q&A
Q. How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Q. How about your company's service, especially after-sale service?
A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: Is there any advantages of your price?
A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of SINOTRUK, which provides guarantees for reasonable price and good quality. Especially, we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
Production process
