| Place of Origin: | China |
| Brand Name: | SHANTUI |
| Certification: | ISO/CCC |
| Model Number: | SD13 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units per month |
| Machine Weight:: | 13.7 Tons | Dimension(Long * Breadth * High):: | 4492x3185x2950mm |
|---|---|---|---|
| Blade Type:: | Straight Tilt Blade | Rated Power:: | 130hp |
| Condition:: | New | Moving Type:: | Crawler Bulldozer |
| Highlight: | dirt moving equipment,earth digging equipment |
||
13.7 Tons Weight SHANTUI Brand 130hp Bulldozer SD13 With Straight Tilt Blade
Product description
The SD13 bulldozer equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation. The SD13 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system.
With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD13 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.
Parameter
| ITEM | UNIT | SD13 |
| L×W×H (Ripper not included) | mm | 4492×3185×2950 |
| Operating weight (Ripper not included) | t | 13.7 |
| Engine | - | Shangchai SC8D143G2B1 Cummins 6CTA8.3-C145 |
| Rated power | kW/rpm | 95.5/1900 108/1900 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade Angle blade |
| Blade width | mm | Straight tilt blade 3185×1090 Angle blade 3475×915 |
| Dozing capacity | m3 | Straight tilt blade 3.7 Angle blade 3.4 |
| Ma× drop below ground of blade | mm | 590 |
| Lift height of blade | mm | 930 |
| Ripper type | - | Three-shank ripper |
| Ripping depth of ripper | mm | 467 |
| Lifting height of ripper | mm | 559 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 38 |
| Width of track shoe | mm | 460 |
| Track gauge | mm | 1880 |
| Ground length and ground pressure | mm/MPa | 2365-0.063 |
| Pitch | mm | 190 |
| Forward speed | km/h | 0–3.2 |
| 0–5.9 | ||
| 0–9.8 | ||
| Reverse speed | km/h | 0–3.9 |
| 0–7.1 |
Advantages
1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.

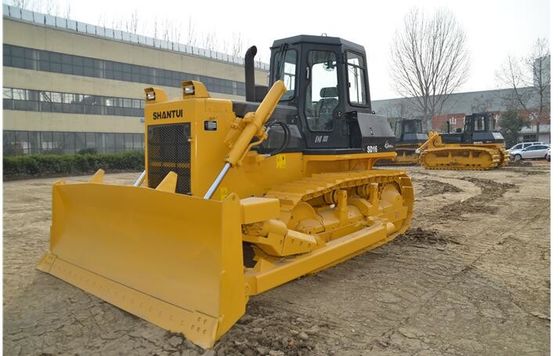

Product picture
