| Fuel Type: | Diesel | Dimensions (L X W X H) (mm): | 6420*2350*2380 |
|---|---|---|---|
| Driving Type: | 4x2/6x2/6x4/8x4/8x6/4x4/6x6/etc | Color: | Customer's Requirement |
| Towing Weight: | 3-30 Ton Option | Max. Speed: | 120km/h |
| Emission Standard: | Euro 2 | Transmission Type: | Manual |
| Highlight: | heavy wrecker trucks,emergency tow truck,120km/h road rescue wrecker truck |
||
Small 4*2 Flatbed Tow Truck Wrecker Hydraulic Flatbed Middle Duty Road Wrecker Truck
Product Description
Wrecker truck, full name is road wrecker truck, is also called road rescue wrecker truck or towing truck. It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc. Wrecker truck basically is refitted from the loading goods second class chassis, according to the wrecker truck's structure, it can bedivided into tow, loading, lifting, rescue (single arm type and arms type) wrecker truck.
Product parameter
| Chassis model | EQ1160 | ||
| Cab | Single row cab with power steer | ||
| Overall dimension(mm) | 8095*2310*2280 | ||
| GVW( kg) | 16000 | ||
| Wheelbase(mm) | 4500 | ||
| Tire | 7.00-16 | ||
| Enging | Model | B170-33 (Europe 3 emission standard) | |
| Horse power | 170hp | ||
| Displacement | 5900L | ||
| Eletric system | 24v | ||
| Lifting function | |||
| Rated. Lifting weight(kg) | 4000 | ||
| Max. Pulling power of winch (kgs) | 8000 | ||
| Length of steel cable(m) | 25 | ||
| Speed of winch (m/min) | 8 | ||
| Back load function | |||
| External dimension of platform (length×width)(mm) | 6200*2350 | ||
| Max. Loading of platform(kgs) | 8000 | ||
| Min. Elevation of full extending platform ° | 10 | ||
| Standard equip |
One pair of L shape tyre locker One pair of tow fork Four bundling belt One hook chain One warning light Double side combined operation Hydraumatic system |
||
Packaging & Shipping
1. Packaging: Nude, but waxed before shipment in our factory.
2. Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements.
Our Services
Our service
Article 1: Quality
1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.
1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.
Article 2 Packing & Transportation
2.1- Packing: Nude Cargo
2.2-Shipping marks: none
2.3- Transportation:RORO vessel or container
Article 3 Quality/Specifications/Quantity discrepancy
If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.
Article 4 Warranty and After-sales service
We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.

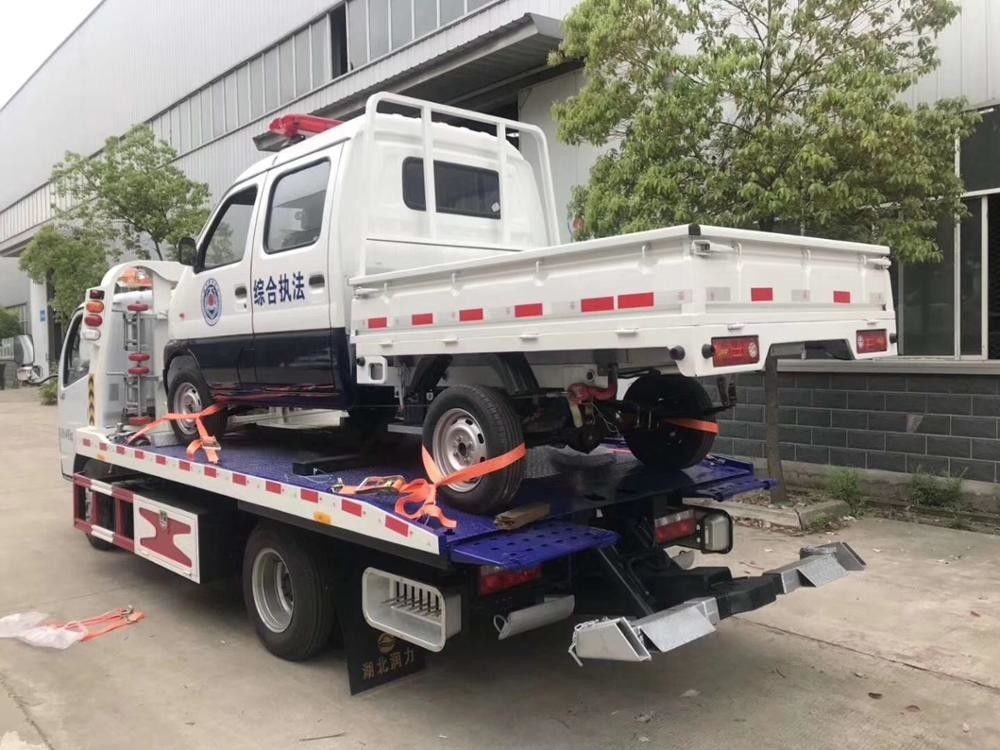

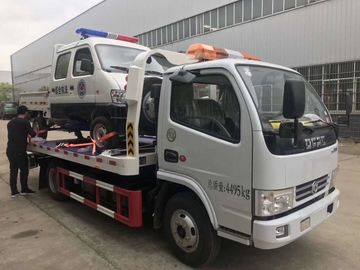

Product picture
