| Place of Origin: | CHINA |
| Brand Name: | SINOTRUK |
| Certification: | ISO9001 |
| Model Number: | SINOTRUK HOWO |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | NUDE |
| Delivery Time: | 15-45DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Unit/Units per Month |
| Rated Lifting Moment: | 20T | Engine: | Diesel Engine |
|---|---|---|---|
| Emission Standard: | Euro 2/3/4/5 | Place Of Origin:: | Shandong, China (Mainland) |
| Package: | Standard Exporting Packing | Span: | 5.702 |
| Product Name: | Truck Mounted Crane | Max Lifting Capacity: | 10ton |
| Color: | Customer Requirements | Driving Type: | 6*4 |
| Highlight: | truck mounted hydraulic crane,telescopic boom truck mounted crane,CCC 6x4 cargo crane truck |
||

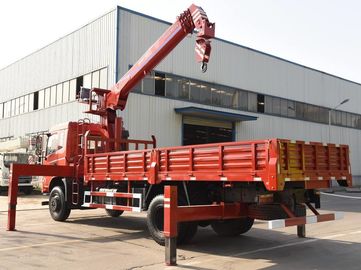

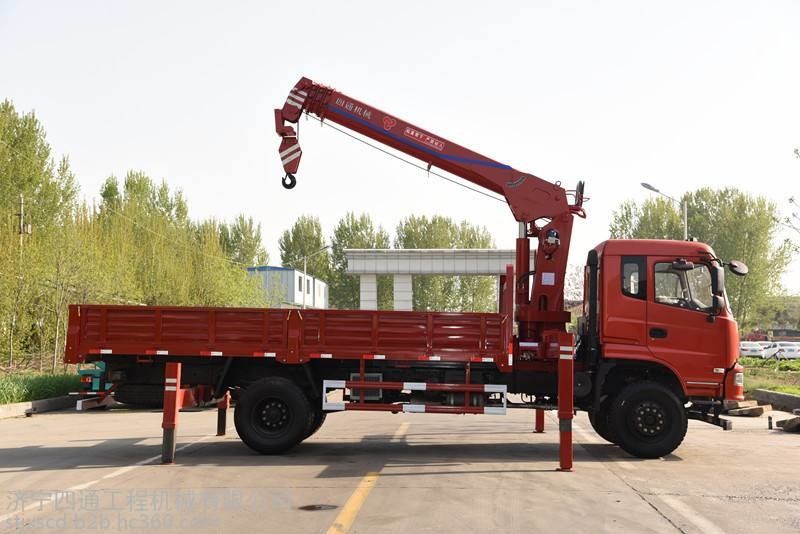

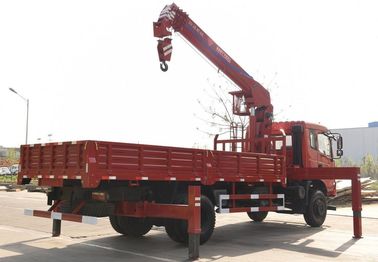

China howo sino new price 6x4 cargo crane truck with crane 10 ton singapore truck mounted telescopic boom crane
Product Quick Details:
Feature:Truck Crane
Condition:New
Application:Construction
Rated Loading Capacity:
Rated Lifting Moment:
Span:5.702
Place of Origin:China
Brand Name:famous brand
Certification:CCC
Product name:Truck Mounted Crane
Crane type:Optional
Color:Customer Requirements
Engine:Diesel Engine
Driving type:6*4
Emission standard:Euro 2/3/4/5
Max lifting capacity:10ton
Loading Capacity:20~30 Tons
Chassis brand:Sino Truck
cab:hw76
Supply Ability:100 Unit/Units per Month
Packaging Details
All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL and FLAT RACK CONTAINER, 40 HQ Container for the trailer and parts only.
PortChina main port
Lead Time :
| Quantity(Units) | 1 - 1 | >1 |
| Est. Time(days) | 30 | To be negotiated |
Why choose us?
Factory
We have own factory and skilled worker, rich-experienced design team and responsible QC and good after sales service.
Quality and Price
We are strictly control quality from raw material to finished products. And ensure high quality of your required products. Also we manage to control the cost and save every penny for your party.
Amount
We can provide various kinds of special truck and trailer, various machinery for your choices. Also, we can customize per your specific requirements.
Your Model
Our design team can design per your specific text description and reference design.
Of the Public Accounts
All the payment will be received by our company bank account. Also all the transaction by monitored by union pay.
Convenient Transportation
We cooperated with efficient logistics. Which ensure the goods can be reached you timely. And win much more time for your party.
Choose
All the discussion and terms will be showed in our contract. Which ensure your interests legally. Also welcome to visit us at any time.
Pre-consultation
Please contact us before you place order, or need any technical support or guildance.
Specialty
We have careful sales and merchandiser, own factory and long term cooperated logistics, and after-sales worker.
Commissioner
We have patient and efficient pre-sales worker, and considerate after-sales workers. Who do best for your party.
All The Time
We are standing by 24 hours. Including public holidays.
Product Specification:
| Truck Brand | SINOTRUK—HOWO |
| Chassis No | ZZ1257M4641W |
| Cargo body size(LxWxH) | 6500x2650x600mm; floor3mm,side1.5mm |
| Dimension(Lx W xH) (mm) | 10350×2680×3900 |
| Telescopic arm crane |
Max.lifting capacity:10ton Max.lifting height:9.755m Max.lifting moment:20T.m Rotation angle:360°(all rotation) Oil flow of hydraulic system:40L/min Pressure of hydraulic system:28Mpa Oil tank capacity:160L Crane weight:3477kg Installation space:1150mm |
| Approaching angle/Departure angle(°) | 16/12 |
| Overhang(front/rear) (mm) | 1500/2875 |
| Wheel base (mm) | 4600+1350 |
| Max speed(km/h) | 102 |
| Curb weight(kg) | 14850 |
| Gross Vehicle weight(kg) | 25000 |
| Engine | WD615.87, Inline 6 cylinders,supercharged intercooling,central supercharger,electric high pressure and common rail |
| 290HP | |
| Euro 2 | |
| Transmission | HW10,10 forward&2 reverse |
| Brake system | Service brake:Dual circuit compressed air brake |
|
Parking brake:spring energy, compressed air operating on rear wheels |
|
| Auxiliary brake:Engine exhaust brake | |
| Steering system | 8198,hydraulic steering with power assistance |
| Front axle | HF7 |
| Rear axle | ST16 |
| Tyre | 12R22.5, 10+1 spare |
| Electrical system |
Battery:2X12V/165Ah; Alternator:28V-1500kw; Starter:7.5Kw/24V; |
|
Cab HW76 cab,one sleeper,with A/C. all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
|
