| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | CCC/ISO |
| Model Number: | ZZ1107G4215C1 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Condition: | New | Emission Standard: | Euro 3 |
|---|---|---|---|
| Dimensions (L X W X H) (mm): | 78500X2400X3150 | Model Number: | ZZ1107G4215C1 |
| Transmission Type: | Manual | Fuel Type: | Diesel |
| Gross Vehicle Weight: | 9990 | Brand Name: | SINOTRUK |
| Highlight: | aircraft refueler trucks,truck mounted concrete pump |
||
SINOTRUK HOWO 4x2 10 CBM Waste Collection Vehicle Truck Euro 3
Product description
Garbage compactor truck, used for daily garbage collecting, compacting, and delivery.
It is widely used in garbage processing inside city. The truck chassis is SINOTRUK HOWO brand light duty chassis.
Compression garbage truck is the urban sanitation special vehicle which is used to highly collecting,transiting garbage and could avoid to leak along the way leading to secondary pollution in the collecting and transiting process.It is the ideal urban sanitation equipment.
1. The collecting method is simple.
2. High compression ratio and big loading capacity
3. Automatic operation: adopting computer controlling system, could set two operating models with full-automation and half-automation.
Product parameter
| HOWO 4x2 8 m3 rear loader garbage compactor truck | ||||
| Truck Model | ZZ1107D4215C1 | |||
| Truck Brand | SINOTRUK-HOWO | |||
| Drive wheel | 4x2 | |||
| Steering Type | Left hand drive(right hand driving is optional) | |||
| Body |
Garbage Volume: 10 CBM Garbage container material : carbon steel Garbage container thickness: 5mm Tailgate hopper capacity: 100L Unloading system: Push Plate Type Feed in one cycle working time: ≤25s Feed out one cycle working time:≤40s Operation: Automatic and manual Amounts of Cylinder Unloading cylinder: 1units Lifting cylinder: 2units Up&Down cylinder: 2units Scraper cylinder: 2units Squeeze cylinder: 2units Hopper cylinder: 2units |
|||
| Dimension(Lx W xH)(mm) | 7560×2400×3150 | |||
| Wheel base (mm) | 4200 | |||
| Max speed(km/h) | 90 | |||
| Curb weight(kg) | 5480 | |||
| Gross Vehicle Weight(kg) | 9990 | |||
| Engine | Fuel type | Diesel | ||
| Horse Power, max(kw/rpm) | 140HP,160hp is optional | |||
| Emission | EURO3 | |||
| Fuel tanker capacity(L) | 120 | |||
| Transmission | Model | WLY6T51, 6froward & 1 reverse | ||
|
Brake system
|
Service brake | Dual circuit compressed air brake | ||
| Parking brake | Spring energy,compressed air operating on rear wheels | |||
| Auxiliary brake | Engine exhaust brake | |||
| Front axle | 3200kgs loading capacity | |||
| Rear axle | 8000kgs loading capacity | |||
| Color | As per customer’s requests | |||
| Tyre | 8.25R20, 6 pieces+1 spare tire. | |||
| Electrical system | Battery | 2X12V | ||
| Cab |
2080 cab,2 seats.with A/C Radio,sun shield,clutch booster,power steering,adjustable steering wheel,heater,electric control flameout,electrical heating,air dryer,etc |
|||
Our customer all over the world
African countries:
Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda
South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.
Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.

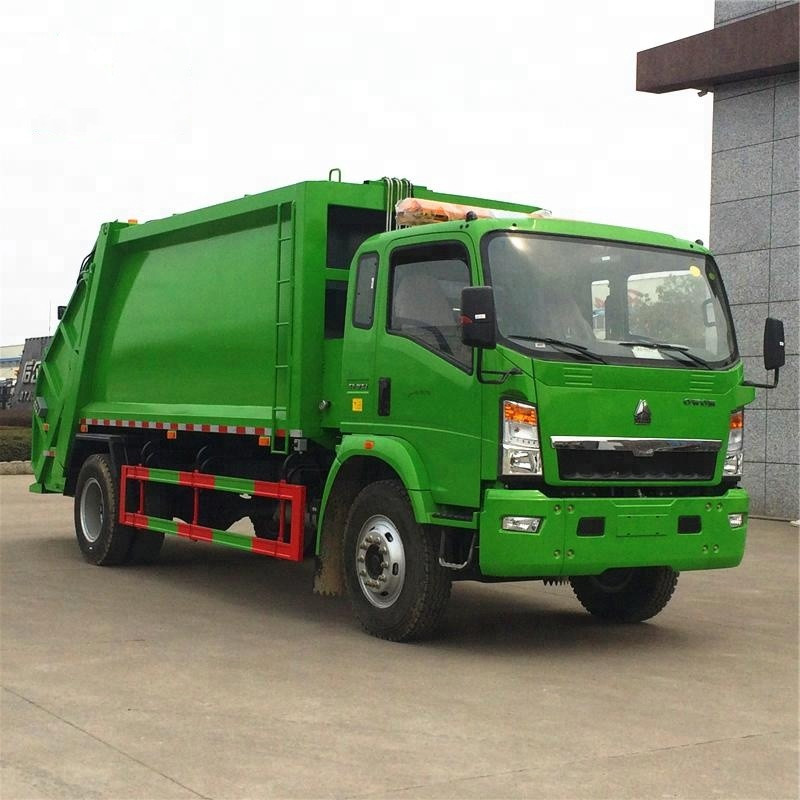

Product picture
