| Place of Origin: | China |
| Brand Name: | BZ |
| Certification: | CCC/ISO |
| Model Number: | BZT1500 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Sets per Month |
| Drilling Depth(m): | 800-1200-1500m | Fuel Type: | Diesel |
|---|---|---|---|
| Transportation Size: | 15230*2790*4345 Mm | Voltage: | 380V |
| Drilling Diameter: | 660 Mm | Drill Rod: | 3-1/2"; 4-1/2";5-1/2" |
| Highlight: | pile driving equipment,borehole drilling machine |
||
BZT1500 trailer mounted water well drilling rig borehole drilling machine rotary drilling rig
Condition:New
Type:Rotary Drilling Rig
Power Type:Diesel
Place of Origin:Shandong, China (Mainland)
Brand Name:BINZUAN
Usage:Water Well
Voltage:380V
Dimension(L*W*H):15230*2790*4345 mm
Weight:45000 kg
Certification:ISO9001:2008
Warranty:1 Year
After-sales Service Provided:Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Drilling depth:800-1200-1500m
Drilling diameter:660 mm
Product name:trailer mounted water well drilling rig BZT1000
drill rod:3-1/2"; 4-1/2";5-1/2"
1. BZT1500- trailer mounted drilling rig is designed by our engineers; it is adopt trailer mounted and is a rotary drilling rig.
2. This rig is a rotary drilling rig with directional circulation, which is equipped with BW1200/7 mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
3. The power of drilling rig comes from the Diesel engine, the power is 269kw, the brand is Cummins; the rig sets up distribute implement and hydraulic system. The rig has three motors, and the force were sent to the transmission system, mud pump and hydraulic system.
4. BZT1500 trailer mounted drilling rig used K-type two paragraph telescopic drilling tower, the tower is lifted up by hydraulic cylinder. It is installed the lights on top, middle and bottom of the tower, in order to works at night. The tower exxective height is 16.5m, the bearing capacity not less than 60t.
5. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.
6. It is installed a generator (50kw) , so that it is convenient to illuminate or work at night.
Our customer all over the world
African countries:
Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.
South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda
South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.
Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.
Technical parameter
| Rotary table | Inner diameter: 660mm | ||||
| Drilling depth(m) | 1500m | 1200m | 1000m | ||
| Pipe model(mm) | φ89 | φ114 | φ127 | ||
| The speed of turntable(rpm) | 153,89,55,39 | ||||
| The max. torque of turntable(kn·m) | 22 | ||||
| Hoist | Main hoist | Single rope lifting capacity of main hoist:90kN | |||
| Single rope speed of main hoist: 0.84, 1.90, 3.3m/s | |||||
| Wire rope diameter: D-6×19 φ28mm | |||||
| Assistant hoist | Single rope lifting capacity of main hoist: : 50kN | ||||
| Wire rope diameter: D-6×19 φ20mm | |||||
| Diesel engine | Model | NTA855-C360 | |||
| Rated speed(r/min) | 2100 | ||||
| Power(kw) | 269 | ||||
| Drilling tower | Effective height(m) | 16.5 | |||
| Bearing capacity(t) | 60 | ||||
| Kelly pipe(mm) | 108×108×12500 | ||||
| Hook | Bearing capacity(t) | 60 | |||
| Mud pump | Model | BW1200/7 | |||
| Pressure(Mpa) | 7.0 | ||||
| Theory of flow (L/min) | 1200 | ||||
| Piston stroke(mm) | 270 | ||||
| Piston diameter(mm) | 160 | ||||
| Transport size(mm) | 15230×2790×4345 | ||||
| Working size(mm) | 15222×3800×20265 | ||||
| Speed | 20 Km/h | ||||

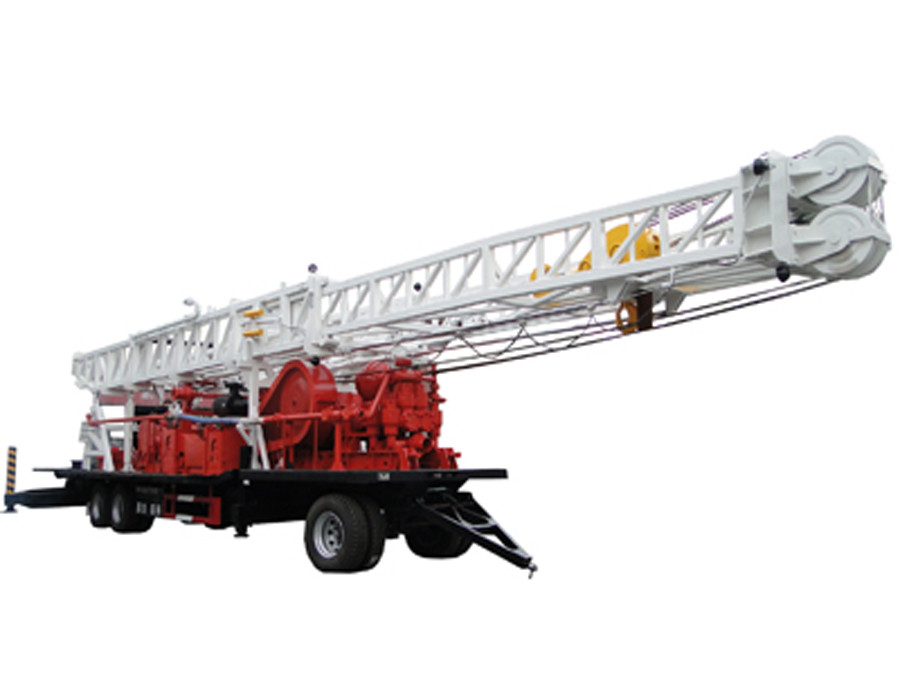

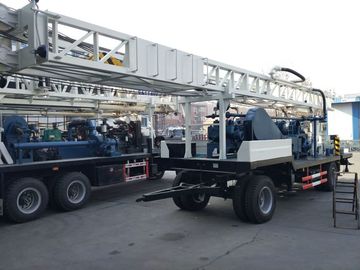

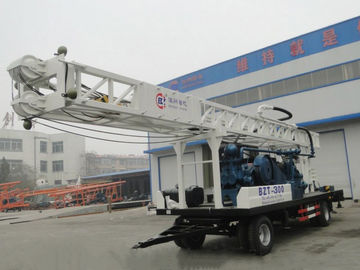

Product picture
