| Place of Origin: | CHINA |
| Brand Name: | FAW |
| Certification: | CCC，ISO9001 |
| Model Number: | J6 |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotaable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Tank Volume:: | 15001 - 30000L | Dimensions (L X W X H) (mm):: | 10225*2500*3454 |
|---|---|---|---|
| Horsepower:: | 251 - 350hp | Fuel Type: | Diesel |
| Engine Capacity:: | 7146cc | Tank Material:: | Carbon Steel, 304 Stainless Steel, Aluminum |
| Highlight: | fuel tanker trucks,oil tanker truck |
||
FAW J6 6x4 type 260hp~280hp 24000 Liter Fuel Tanker With BF6M1013-28 Engine
Product description:
Oil tank truck, also known as mobile fuel trucks, fuel tankers, fuel tank truck, oil tankers,oil transport truck and edible oil tankers.
According to different uses and use environments, there are a variety of refueling or oil transportation functions, with oil absorption, oil pumping, and a variety of oil separation and distribution functions. Can separate warehouse, separate different oil products, tank body set up multiple anti-wave partitions. Can be designed as a chemical transportation vehicle.
Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The tank material adopts high-quality 4-6mm thick carbon steel, stainless steel, aluminum alloy.
Product parameter:
| Item | Unit | Description | ||||||||
| Model | FAW J6 oil Tank Truck | |||||||||
| Dimension | mm | 10225*2500*3454 | ||||||||
| Sample Tank Dimension | mm | 7400*2450*1620 | ||||||||
| Litter | 22000 | |||||||||
| material | Carbon Steel, 6 mm thick | |||||||||
| Option~ Stainless steel, Aluminum steel | ||||||||||
| Curb Weight | kg | 12005 | ||||||||
| G.V.W | kg | 30000 | ||||||||
| Wheel Base | mm | 4800+1350 | ||||||||
| F/R track base | mm | 1950 / 1860 | ||||||||
| F/R Axle-Load | Kg | 6700 / 13000 /13000 | ||||||||
| Type | Steel Spring Type | |||||||||
| Approach/Departure angle | . | 30/13 | ||||||||
| Traction system | Type | 6*4 | ||||||||
| Max speed | Km/h | 90 | ||||||||
| Tire Specification/Number | Model | 11.00R20 / 10 Units+1 Spare | ||||||||
| Engine | Model | BF6M1013-28 | ||||||||
| Emission/Kw | 7146 cc, 195 Kw / 2300 r | |||||||||
| Horse Power | 280 Hp | |||||||||
| Power | 1050 N.m - 14000 r/min | |||||||||
| Type | Diesel, 6 cylinder, turbocharge, water cooling | |||||||||
| Brand | FAW brand Engine | |||||||||
| Gear box | model | 9 F&1R, Manual | ||||||||
| Electronic | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversable, Manual | |||||||||
| Steering | Type | Powering | ||||||||
| Installing | LHD or RHD | |||||||||
| Air Condition | Yes | Radio, CD. | ||||||||
| Equipment | Installed | Top Installing human foldable ladder, Rear climbing ladder, Top Aluminum type Human port diameter 450mm. Bottom Output and input port with ball valve,Bottom urgent cut off valve, Tool box. China manufacturer standard |
||||||||
| Option | Refueling device, fuel dispenser | |||||||||
| Option | API Standard | |||||||||
Our service:
1. Warranty Time; our warranty time is one year from the date of arrival at the destination,in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
2. Tracking service: Because we are factory, we will provide you lifelong tracking service and solve your question at any time, let you feel relieved;
3. Production Ability: We can manufacture more than 300 type Special purpose Truck, Trailer, etc, or provide SKD or CKD. What’s more, we are developing more high quality truck. We also can customize the truck according to your personalized requirements such as material, size, color, paint, logo, etc.

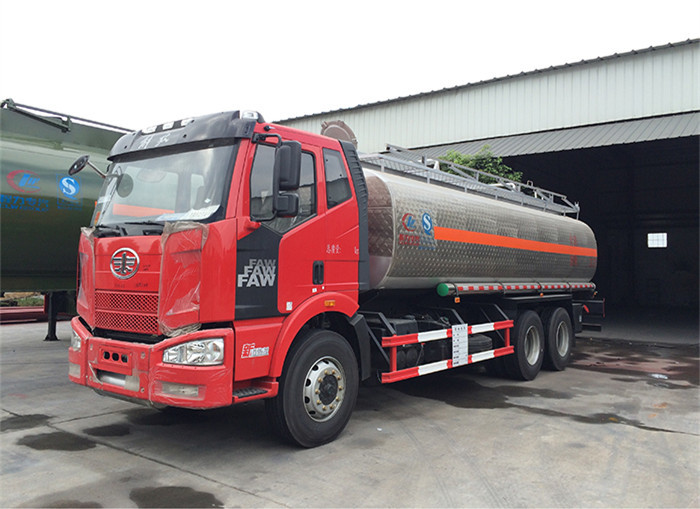

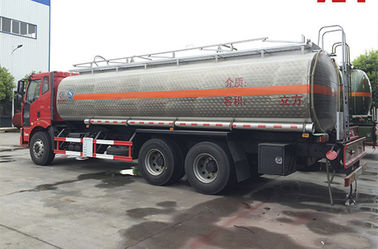

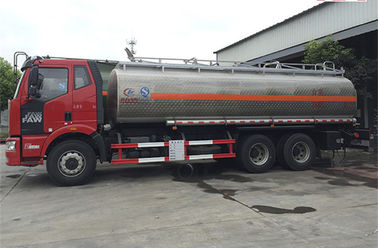

Product photo:
