| Place of Origin: | Shandong, China (Mainland) |
| Brand Name: | HOWO |
| Certification: | CCC,ISO |
| Model Number: | ZZ1107D3815 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Sprinkling Area (m): | > 16 M | Gross Vehicle Weight: | 10000 |
|---|---|---|---|
| Drive Wheel: | 4x2 | Transmission Type: | Manual |
| Emission Standard: | Euro 2 | Tire: | 8.25R16 |
| Color: | Customer's Request | Fuel: | Diesel |
| Highlight: | aircraft refueler trucks,truck mounted concrete pump |
||
China SINOTRUK HOWO 4×2 Light 5000L Watering Cart Optional Color With Diesel
Product description
water sprinkler is also named Water Tanker truck, water sprinkler truck, Pesticide spraying Truck, water fire truck, Multifunction water truck, water spray vehicle
The water sprinkler is suit to spray wash all kinds of road, trees, Lawn green, Building construction, high speed road.
With multifunction, spray, anti-dust, high-low level spray, Pesticide spraying, Fire Water, Guardrail Cleaning and so on.
The water truck also can transport water, drinking water, discharge water and emergency fire function.
Water truck consist of water tank , PTO . water pump . pipeline system , inlet and outlet , platform chassis .
Chassis available : Foton , Sinotruk howo . FAW. Shacman , IVECO . etc
Water truck equipment optional : GPS . gimbaled nozzle , solenoid valve , pneumatic valve , cabin operation , external power . tank body corrosion and rust protection ,etc
Water truck capacity: 4cbm , 5cbm , 6cbm , 8cbm , 10cbm , 13cbm ,15cbm , 20cbm ,20-30cbm
We can custom water truck as customer’s requirement .
Product parameter
| Truck Brand | SINOTRUK—HOWO Light Water Tank Truck | |||
| Driving wheel | 4x2 | |||
| Driving type | Left Hand Driving | |||
| Chassis Model | ZZ1107D3815C1 | |||
| Dimension(Lx W x H)(unloaded)(mm) | 7500*2450*2750 | |||
| Tank Volume | 5,000L | |||
| Tanker body material | Q235B | |||
| Thickness of tanker end/body | 5mm | |||
| Front Spray water | Duckbill type | |||
| Rear sprinkling | Cylinder type | |||
| Water cannon | with | |||
| Water absorption pipe(Inner steel ) | 3” 3 meters | |||
| Approaching angle/Departure angle(°) | 20/18 | |||
| Overhang(front/rear) (mm) | 1160/1835 | |||
| Wheel base (mm) | 3800 | |||
| Leaf spring | 9/12+9 | |||
| Max speed(km/h) | 90 | |||
| Curb weight(kg) | 2400 | |||
| Total Weight(Kg) | 10000 | |||
|
Engine
|
Model |
4102 4- stroke direct injection diesel engine, 4 cylinders in line with water cooling |
||
| Fuel type | Diesel | |||
| Horse Power, max(kw/rpm) | 116hp | |||
| Displacement(L) | 3.76 | |||
| Emission | EURO II | |||
| Fuel tanker capacity (L) | Standard | |||
| Transmission | Model | WLY6T46,6 forwards and 1 reverse | ||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Front axle | 2.7 | |||
| Rear axle | 7.2 | |||
| Color | Optional | |||
| Tyre | 8.25R16 Steel , 6+1 Spare | |||
| Cab | 2080 standard Cabin with air conditioner. | |||
Manufactory
INTERNATIONAL STANDARD MANUFACTURING
Strength casting legend, advanced production technology ensures the first-class quality level,Professional heavy truck production lines of international standards create the most trusted card products for you.
SINOTRUK has many specialized international advanced level production line-frame, body assembly production and entire vehicle assembly, inspection and so on, and all use of advanced international, domestic leading production, testing facilities, high degree of automation, all can provide a strong support for the building of the model.
Vehicle assembly line is the longest general assembly line of heavy commercial vehicles in Asia. The whole production line is composed of pre line assembly line, trim line, engine assembly line and axle assembly line etc. SINOTRUK has the most advanced fully automatic nut tightening machine, pipe packing machine, transmission shaft packaging and assembly facilities and various liquid filling machines, electrical testing instrument and so on. Guarantee the quality of the vehicle assembly strongly.

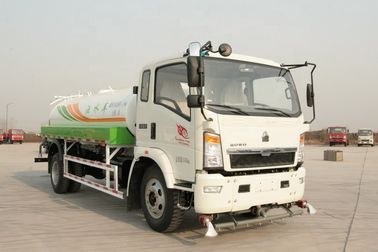

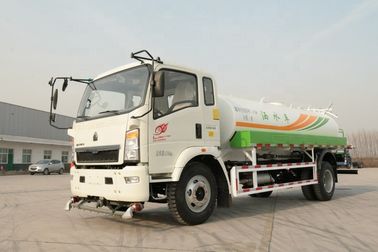

Product photo
