| Place of Origin: | China |
| Brand Name: | BZ |
| Certification: | CCC/ISO |
| Model Number: | BZT600 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Drill Depth（m）: | 600 | Drill Diameter（mm）: | 500 |
|---|---|---|---|
| Turntable Hole Diameter（mm）: | 500 | Turntable Speed（r/min）: | 38,57,85 |
| Turntable Torque In Theory: | 13.8，9.2，6.2 | Main Hoist Single Lifting Power（kNm）: | 40 |
| Assistant Hoist Single Lifting Power（KN）: | 30 | Mud Pump: | 90kw Electric Motor |
| Highlight: | pile driving equipment,borehole drilling machine |
||
BZT600 Trailer-Mounted Drilling Rig 600m Depth 500mm Diameter Optional Color
Product description
BZT600 drilling rig is a kind of trailer drilling rig, the diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components are mounted on the chassis. It can be pulled through tractor or truck.
It is equipped 4 hydraulic legs and 2 mechanical legs to balance the rig. After leveling the rig, The mechanical legs can be locked the cylinder using locknut. So, even if the hydraulic cylinder leaks, the chassis is still stable for drilling.
This drilling rig equipped with an auxiliary unloading cylinder, it can be used to push the turntable ratchet, to achieve auxiliary unloading the drill pipe.
The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
Product featrue
BZCT600 drilling rig is installed on a trailer together with diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components. It can be traction through tractor or truck. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability. This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
Product parameter
| Technical parameter | |||
| Drill depth(m) | 600 | ||
| Drill diameter(mm) | 500 | ||
| turntable hole diameter(mm) | 500 | ||
| Turntable speed(r/min) | 38,57,85 | ||
| turntable torque in theory | 13.8,9.2,6.2 | ||
| main hoist single lifting power(kNm) | 40 | ||
| assistant hoist single lifting power(KN) | 30 | ||
| efficient hight of tower | short tower(m) | 12 | |
| long tower(m) | 15 | ||
| swivel | Max-load(T) | 30 | |
| Inner diameter(mm) | 63.5 | ||
| kelly(mm) | Short tower | 108x108x7500 | |
| long tower | 108x108x10500 | ||
| Drill rod(mm) | Short tower | ￠89×10×5500 | |
| Long tower | ￠89×10×9000 | ||
| Working size(L×W×H mm) | Short tower | 15100×2480×14170 | |
| Long tower | 15100×2480×17170 | ||
| Transporting size(L×W×H mm) | Short tower | 15100×2480×4100 | |
| Long tower | 16630×2480×4100 | ||
| Electric generator | model | SCGC-200kW diesel generating set | |
| Rated voltage(V) | 400 | ||
| Rated current(A) | 360 | ||
| frequency(Hz) | 50 | ||
| mud pump | model | 3NB-130 | |
| specified discharge(L/s) | 8.4-16.6 | ||
| rated working pressure(MPa) | 5-10 | ||
| Input speed(r/min) | 565 | ||
| power | 90kw electric motor | ||
| gear oil pump | model | CB-E532F | |
| displacement(ml/r) | 32 | ||
| rated working pressure(Mpa) | 20 | ||
| High pressure(MPa) | 25 | ||
| power | 11kW electric motor | ||

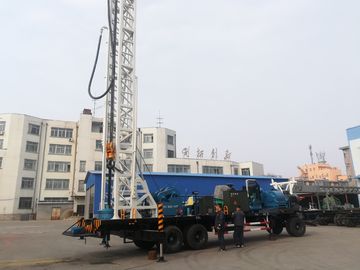

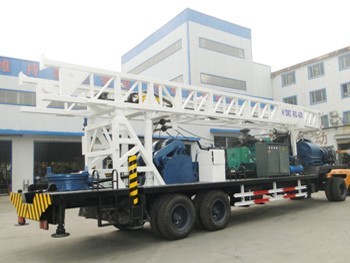

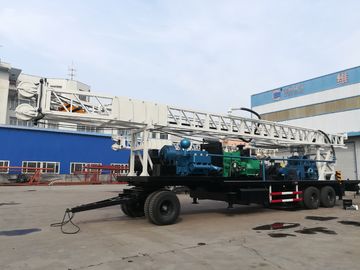

Product picture
