| Place of Origin: | China |
| Brand Name: | Sinotruk |
| Certification: | CCC/ BV/ISO |
| Model Number: | SINOMTP12019 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 UNITS/MONTH |
| Production Name:: | Fire Fighting Truck | Drive Type:: | 6X4 |
|---|---|---|---|
| Cubage (m3) ：: | Water Tank12 ,foam Tank 4 | Tank Material:: | Carbon Steel |
| Storage:: | Water ,foam , Powder | Horsepower:: | 336hp |
| Highlight: | aircraft refueler trucks,truck mounted concrete pump |
||

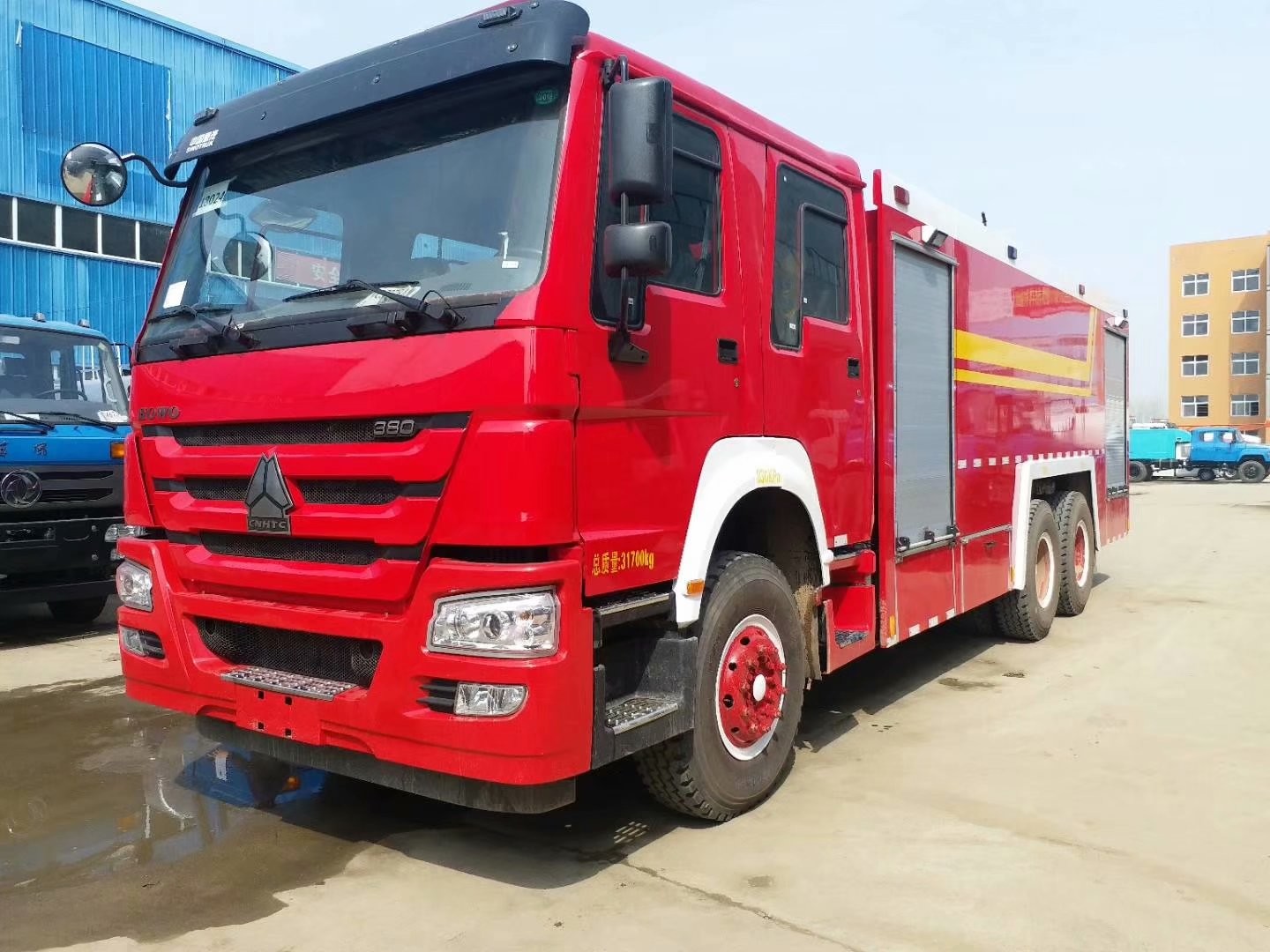

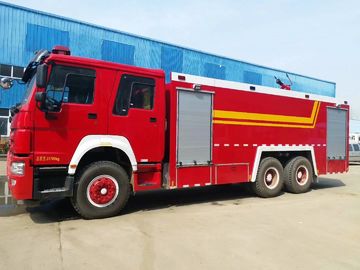

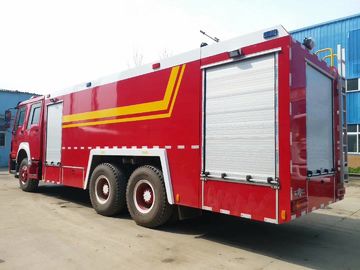

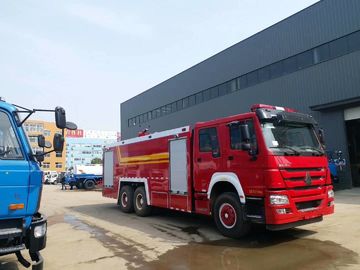

HOWO heavy duty emergency 6x4 fire fighting truck fire truck water tanker fire engine
Specification:
| GVW32800kg Driving Type 6x4 | |||
| Model | JDF5314GXFPM | ||
| Cab | Double row, allowable 3+3 passengers | ||
| Engine(Hp) | 336 | ||
| Power(Kw) | 247 | ||
| Wheelbase | 4600+1350 | ||
| Front/Rear Suspension | 1500/2700 | ||
| Steering | Power steering | ||
| Approach/departure angle | 14/9 | ||
| Wheels & tire | 12.00-20 | ||
| Tire number | 10+1 | ||
| Tank Dimensions(mm) | |||
| Cubage (m3) | Water tank12 ,foam tank 4 | ||
| RHD or LHD | optional | ||
| Overall Dimensions(mm) | 10150×2550×3780 | ||
| Curb weight (Kg) | 15270 | ||
| Engine | Model | WD615.69 | |
| Horsepower | 336 | ||
| Maximum output Kw | 247 | ||
| Maximum torque N.m | 1350 | ||
| Type | 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine | ||
| Displacement | 9.726L | ||
| Sinotruk brand, Euro 2 | |||
| Driving passenger | 2,3 | ||
| Transmission | HW19710 ,10 speed forward and 2 reverse, manual | ||
| Front Axle | HF 9 | ||
| Rear Axle | HC16 | ||
| Brake System | air brake ,exhaust brake | ||
| Color and LOGO | customized | ||
| Electric system | 24V | ||
| Fire equipment part | Fire pump | CB10/60 , rated pressure 1.0MPa, flow 60L/s | |
| Fire gun | PL48 , flow 48L/s , jet distance ≥55m | ||
| Standard configuration | national standard equipment box, 25 units national standard fire-fighting equipment, fire pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools ,rear climbing ladder, water tank. | ||
| Optional configuration | foam type, dry powder type, stainless tank, other requirements. | ||
| Delivery date | Within 20 days after receipt advance | ||
| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity | ||
Description:
1. Capacity: 2-15CBM;
2. Tank Material: cabon steel plate, stainless steel plate, etc;
3. Cab:Single row or double rows, Right/Left hand drive, with A/C;
4. Fire pumps: middle pressure pump, low pressure pump, high pressure pump, ordinary pressure pump, etc;
5. Other descriptions: Equipment box with 5-9 curtain doors, truck body with stoving varnish, 1100-1600mm alarm lamp, can be equipped with all kinds of fire fighting equipment.
Application:
It is widely used in urban public security fire brigades, oil and chemical industry, factories and mines, forests, ports and other departments, which can put out a fire quickly, is an ideal fire fighting equipment.
Advantages:
1, The price is competitive; we are the direct channel to supply the fire-fighting truck
2, Powerful engine and strong frame, which can suit to all kinds of road conditions, especially for the tough roads
3, All colors are available according to your choice.
4, Fast production period, and quick arrangement of delivery.
5. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
6. Professional team for spare parts and after-sales services.
1.The main machine nude, attached parts and tools put into standard export box
2.Within 20 days deliver the goods to main Port
3. Ro-Ro ship or bulk ship or according to customer requiring
4.We have professional forwarding partners
