| Place of Origin: | JINAN CITY OF CHINA |
| Brand Name: | SINOTRUK |
| Certification: | CC |
| Model Number: | ZZ1257N3841W |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | NUDE |
| Delivery Time: | 15-45DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000/MONTH |
| Chassis Model: | ZZ1257N3841W, Driving Type 6x4 | Condition:: | New |
|---|---|---|---|
| Transmission: | HW19710 | Emission Standard: | Euro 2 |
| Mixing Volume: | 9cbm | Color: | Optional |
| Highlight: | truck mounted concrete pump,mobile cement mixer trucks |
||

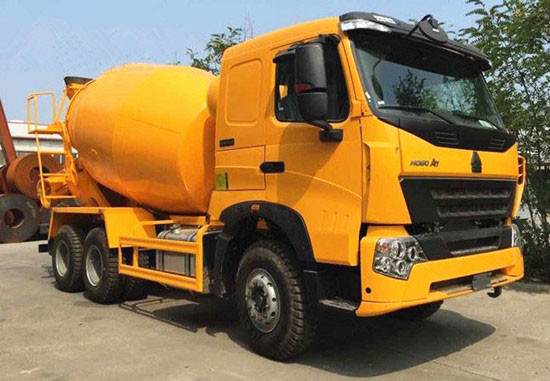

SINOTRUK HOWO A7 6x4 9m3 Concrete Construction Equipment With 59% Stuffing Volume
Product Specification:
| SINOTRUK HOWO A7 336 HP 6x4 Concrete mixer truck with 9.726L Displacement | |||
| Main description | |||
| Overall Dimensions | 8840mm×2495mm×3800mm | ||
| Tare Weight | 11860kg | ||
| Front Overhang | 1500mm | Rear Overhang | 2365mm |
| Color | Optional | Gross of weight | 30000kg |
| Wheelbase | 3800mm+1350mm | Track (F/R) | 2022mm/1830mm |
| Chassis | |||
| Chassis Brand | SINOTRUK HOWO A7 | ||
| Chassis Model | ZZ1257N3841W, driving type 6x4 | ||
| Cab | HW76( left hand drive, air-conditioner, one sleeper) | ||
| Engine | SINOTRUK WD615.47, 371hp, Euro II emission standard,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection, displacement 9.726L | ||
| Gear Box | HW19710, 10 forward and 2 reverse | ||
| Traversing Mechanism | German ZF8118, hydraulic steering with power assistance | ||
| Rear Axle | ST16 tandem axle, ratio 5.73 | ||
| Wheels and tires | 12.00R20, 10 units with one spare wheel | ||
| Brakes |
Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake |
||
|
Electrics |
Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
||
| Mixing system | |||
| Mixing Volume | 9cbm | ||
| Water Tank Volume | 400L | ||
| Mixing Drum | Body steel plate thickness 6mm, Front end thickness 8m | ||
Product Quick Details:
Brand Name:SINOTRUK
Model Number:Concrete Mixer Truck
Weight:25000kg
Power(HP):371hp
Mixing Volume(M³):9m³
Stuffing Volume(%):59.3
Feeding Speed(M³/min):≥3
Discharging Speed(M³/min):≤2
Discharge Residue(%):≤0.2
Slump Scope(mm):50～220
Drum Speed( Min):0～16
Drum Material:8/16MnR 5/B510 ,3mm,4mm,5mm
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Product Features:
1). Using hydraulic transmission device, do not rely on external force, easy to use, continuous rotation of the tank during transport, commercial concrete does not precipitate, not segregation.
2). Easy to operate, a handle to achieve centralized control of mixing tank, the configuration mature and reliable, easy maintenance.
3). Low noise, no smoke, safe and reliable.
4). The use of high-intensity wear-resistant steel plate mixing tank, durable.
5). Unique inlet setting, easy to spread material.
6). Small size, transport flexibility, easy operation and maintenance, power consumption, energy-saving effect is remarkable.
7). Blade design is reasonable, the discharge residue rate is low.
