| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | XCMG |
| Certification: | ISO |
| Model Number: | XR360 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | NUDE |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 set/month |
| Power(W): | 298kw | Weight: | 90t |
|---|---|---|---|
| Drilling Depth: | 102m | Model: | CUMMINS QSM11-C400 |
| Max.pull-down Piston Push: | 240KN | Voltage: | 220V/380V |
| Dimension(L*W*H): | 11000X4800X24586mm | Drilling Diameter: | 2500mm |
| Max.troque: | 360kN.m | ||
| Highlight: | pile driving equipment,borehole drilling machine |
||

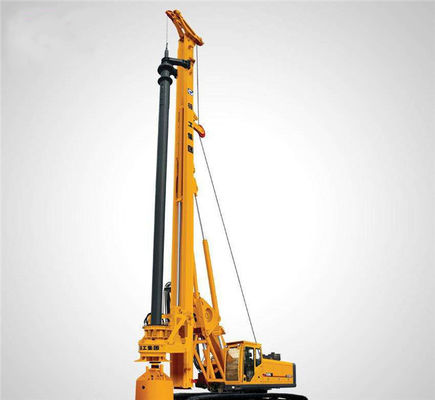

Professional XCMG XR360 rotary drilling rig tool conventional drilling rigs official manufacturer
Product Quick Details:
Condition:New
Type:Rotary Drilling Rig
Power Type:Diesel
Place of Origin:Jiangsu, China (Mainland)
Brand Name:XCMG
Model Number:XR360
Usage:Coal
Voltage:220V/380V
Power(W):298kw
Dimension(L*W*H):11000X4800X24586mm
Weight:90t
Certification:ISO
Product Name:XCMG XR360 rotary drilling rig tool conventional drilling rigs
drilling diameter:2500mm
drilling depth:102m
Max.troque:360kN.m
Model:CUMMINS QSM11-C400
Rotary speed:6-25r/min
Max.pull-down piston push:240KN
2017:rotary drilling rig tool
Hot style:conventional drilling rigs
XCMG:conventional drilling rigs for sale
Warranty:1 Year
After-sales Service Provided:Overseas service center available
Product Features:
II Drill rod: choose one drill rod from standard configuration (φ508) 5-section frictional drill rod (77m) or 4-section mechanical interlock drilling rod (62m). Special designed 6-section frictional drill (102m) rod is accepted.
III Bit: one standard configuration bucket teeth sand drill rigs (choose one from diameter φ800mm~φ2500mm).
It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.
The imported Cummins turbo-supercharged engine is powerful, and has sufficient power reserve.
The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.
The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.
The oil cylinder and sleeve-driven functions are available for selection to satisfy various needs of the users.
Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.
It is equipped with a centralized lubrication system as standard configuration; maintenance is easy.
II Drill rod: choose one drill rod from standard configuration (φ508) 5-section frictional drill rod (77m) or 4-section mechanical interlock drilling rod (62m). Special designed 6-section frictional drill (102m) rod is accepted.
III Bit: one standard configuration bucket teeth sand drill rigs (choose one from diameter φ800mm~φ2500mm).
It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.
The imported Cummins turbo-supercharged engine is powerful, and has sufficient power reserve.
The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.
The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.
The oil cylinder and sleeve-driven functions are available for selection to satisfy various needs of the users.
Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.
It is equipped with a centralized lubrication system as standard configuration; maintenance is easy.
| Description | Unit | Parameter value | |
| Max. drilling diameter | mm | 2500 | |
| Max. drilling depth | m | 102 | |
| Allowable luffing scope (from center of drill rod to slewing center) | mm | 4410~4950 | |
| Drilling rig dimension in working condition (L × W × H) | mm | 11000×4800×24586 | |
| Drilling rig dimension in transport condition (L × W × H) | mm | 17380×3500×3810 | |
| Weight of overall unit (standard configuration, excluding drilling tool) | t | 92 | |
| Engine | Model | CUMMINS QSM11-C400 | |
| Rated power/speed | kW | 298/(2100r/min) | |
| Max. working pressure of hydraulic system | MPa | 35 | |
| Rotary drive | Max. torque | kN •m | 360 |
| Rotational speed | r/min | 5~20 | |
| Crowd cylinder | Max. Pushing force | kN | 240 |
| Max. Pulling force | kN | 320 | |
| Max.stroke | mm | 6000 | |
| Main winch | Max.pulling force | kN | 320 |
| Max. single-rope speed | m/min | 72 | |
| Diameter of the steel wire rope | mm | 36 | |
| Auxiliary winch | Max.pulling force | kN | 100 |
| Max. single-rope speed | m/min | 65 | |
| Diameter of the steel wire rope | mm | 20 | |
| Drilling mast | Left/right inclination of mast | ° | 4/4 |
| Front/back inclination of mast | ° | 5/15 | |
| Rotary table slewing angle | ° | 360 | |
| Traveling | Max. traveling speed of the overall unit | km/h | 1.5 |
| Max. climbable gradient of the overall unit | % | 35 | |
| Crawler | Width of crawler plate | mm | 800 |
| External width of crawler (min.-max.) | mm | 3500~4800 | |
| Center distance between two longitudinal wheels of crawler | mm | 5175 | |
| Average ground pressure | kPa | 103.1 | |
