| Place of Origin: | CHINA |
| Brand Name: | MESDA |
| Certification: | ISO/9001 |
| Model Number: | MC-300CS |
| Minimum Order Quantity: | 1UNIT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units/month |
| Hopper Capacity (m³): | 5m3 | Feed Height(mm): | 3700mm |
|---|---|---|---|
| Feed Capacity(t/h): | 400 | Feed Size Max(mm): | 750mm |
| Crusher Weight(t): | 13t | Crusher Power(kw): | 185kw |
| Highlight: | anfo mixer equipment,mobile mixing unit |
||

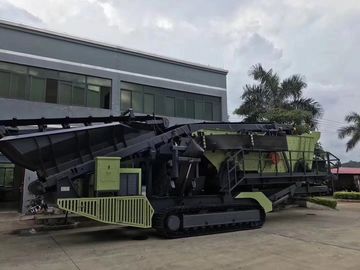

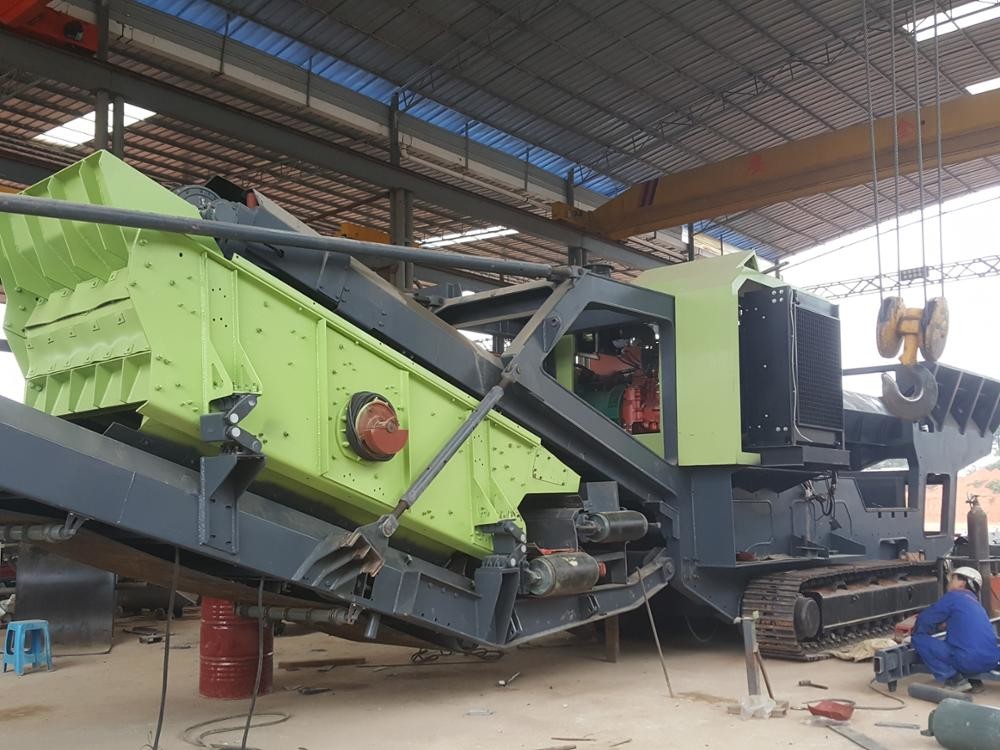

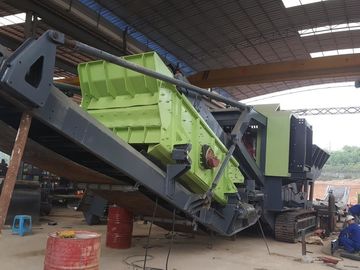

CHINA 400 t/h MC-300CS MOBILE slate CONE CRUSHER with 5 m3 Hopper capacity
Description:
MESDA is always the advocator and prompter of integrated mobile crushing, screening and magnetic separation system. In the past few years, MESDA has been independently developing mobile crushing and screening system by integrating advanced European ideas into domestic situations. Apart from being operated in large scale mines and quarries domestically, MESDA products and solutions have also been exported globally through various channels.
The mobile equipments of MESDA have now become an enormous power, breaking the old tradition of mineral exploitation and promoting a new revolution of mobile crushing and screening.
To achieve this, MESDA has pumped huge resources and capital into the R&D while combing many strong brands. Each brand has been integrated seamlessly into our products.
Mobile Crusher and Screening Plant is suitable for coarse and medium crushing of hard materials in mining, water conservancy, transportation, railway, cement, building materials, metallurgy, chemical, electric power, construction and other industries. The cutting compressive strength is not more than 150 MPa. Large output, high crushing efficiency, low energy consumption, low wear, high reliability, and good cubic shape.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
High crushing ratio and high production efficiency.
Flexible application and strong applicability
Less consumable parts, low operating costs.
Advanced automation control
Laminated crushing, fine grain shape.
Simple maintenance
Perfect pre-sales and after-sales service.
Technical Data:
Feeding Unit | Feed capacity(t/h): 400 | Crusher | Hammer crusher: 1400H |
Feed size max(mm): 750 | Crusher inlet width depth(mm): 1360× 970 | ||
Feed height(mm): 3700 | Max feed granularity(mm): 750 | ||
Hopper capacity(m3): 5 | Crusher weight(t): 13 | ||
Vibrating Feeder | Length × width (mm): 3600 ×800 | Crusher power(kw): 185 | |
Power (kw): 11 | Transition belt | Length × width (mm): 2200 ×500 | |
Main discharge conveyor | Discharge height(mm): 5400 | Power (kw): 2.2 | |
Length × width (mm): 14000 ×1000 | Return Belt | Length × width (mm): 9000 ×500 | |
Power (kw): 11 | Power (kw): 5.5 | ||
Screening | Length × width (mm): 5518 | A Belt | Length × width (mm): 5000 ×500 |
Power (kw): 18.5 | Power (kw): 4 | ||
B Belt | Length × width (mm): 5000 ×500 | C Belt | Length × width (mm): 6000 ×1000 |
Power (kw): 4 | Power (kw): 5.5 | ||
Drive | Power(kw): 105 | Transportation Size(m): 19.5 × 3.2 × 3.8 | |
Weight(t): 62 | Total power(kw): 250 | ||
