| Place of Origin: | JINAN CITY OF CHINA |
| Brand Name: | SINOTRUK HOHAN |
| Certification: | ISO9001 |
| Model Number: | ZZ6255N3646 |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Chassis Model: | ZZ6255N3646 | Driving Type: | Left Hand Drive |
|---|---|---|---|
| Transmission: | HW19710, 10 F And 2 R | Lifting Model: | Ventral Lifting, Strengthen T Model |
| Cabin: | H17, German BENZ Technology | Loading Capacity: | 30T |
| Highlight: | diesel tractor truck,prime mover truck |
||

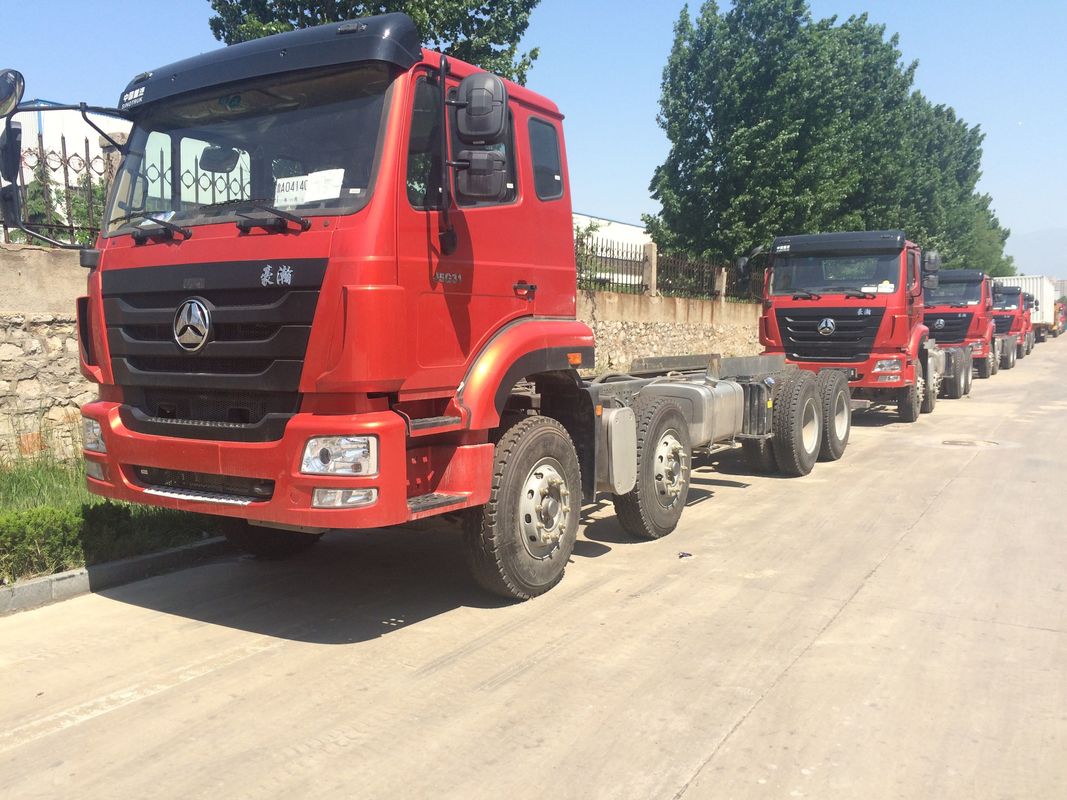

SINOTRUK HOHAN Euro 2 8X4 tractor truck 12 wheeler with HW19710 Transmission
Product desccription:
This model is new design cabin, the designer from Italy, and Powerful engine, reinforced axle, excellent performance, and the many color choice, and the best cost and performance, deeply favored by oversea customers.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive advantages:
1. you the high quality trucks and spare parts at reasonable price.
2. own strong teams in technology that could help you solve problem quickly.
3. the designs according to your special requirement and ideas.
4. supply spare parts (original, OEM, and replacement) for all types of trucks
5. cooperate with efficient logistics which ensure the goods reach you timely and safely.
6. rich experienced team and could provide good after-sales service
| Chassis model | ZZ6255N3646 | |
| Driving type | Left hand drive (LHD) | |
| Color | Optional (yellow, red, black, white, blue, grey, green) | |
| Engine | Model | SINOTRUK brand, D10.38-50,380hp, Euro III, Diesel. |
| Type | Six cylinders inline, water cooling, 4 stroke, supercharge intercooler | |
| Engine net weight (kg) | 850 | |
| Rated Power (kw/rpm) | 279/2200 | |
| Maximum Torque (Nm) | 1590N.m | |
| Maximum Torque speed | 1200~1500RPM | |
| Compression ratio | 17.5:01 | |
| Bore X Stroke | 126x123mm | |
| Displacement L | 9.726 | |
| Lgnition order | 1-5-3-6-2-4 | |
| Cabin | H17, German BENZ Technology, extended cab with one sleeper (berth), air-conditioner, damping comfortable seat, dash board with LCD, MP3, safety belts, curtain, electrical window regulator, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber devices etc. | |
| Transmission |
HW19710, 10 F and 2 R, manual. Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction. |
|
| Front Axle | HF7, rated load 7000kg, drum brake. | |
| Rear Axles | MCY11, rated load 16000kgx2, Speed ratio: 4.11 | |
| Steering | D50, power steering with hydraulic system. | |
| Brake system |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
|
| Tires | 12R22.5 Steel radial tires, plus one spare tire (totally 11 units) | |
| Max. speed | 102km/h | |
| Fuel tank | 600L volume | |
| Lifting Model | Ventral Lifting, strengthen T model | |
| External dimension | 6850x 2496x3700mm | |
| Loading Capacity | 30T | |
