| Place of Origin: | JINAN SHANDONG |
| Brand Name: | SINOTRUK HOWO A7 |
| Certification: | ISO/CCC |
| Model Number: | ZZ1257N3841W |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units/month |
| Model: | ZZ1257N3841W | Wheelbase: | 3800mm+1350mm |
|---|---|---|---|
| Color: | Optional | Displacement: | 9.726L |
| Steering: | ZF8118 | Cab: | HW76 |
| Highlight: | truck mounted concrete pump,self loading mobile concrete mixer |
||
Description:

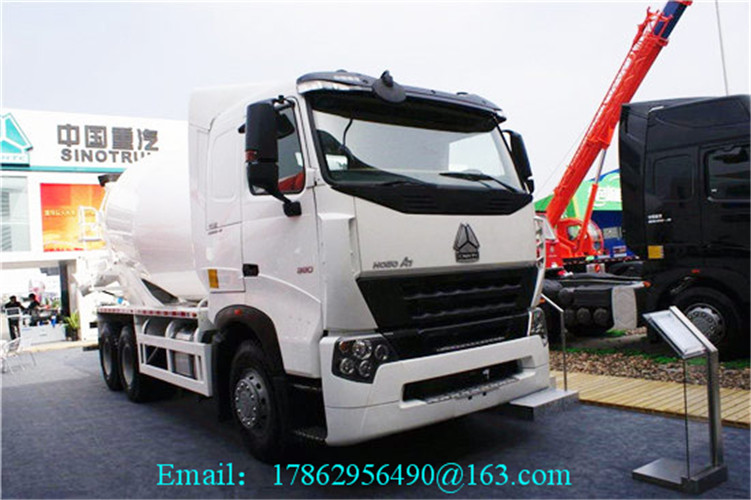

SINOTRUK HOWO A7 6×4 Concrete mixer truck adopt HW76 Cab single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
Adopting full hydraulic transmission, it can bring the power of engine into
full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.
Packing:
The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. The satisfied product with high level standard.
2. The full aspect service from order to shipping.
3. Give customer most suitable advice when customer has special needs for your transportation or construction.
4. Specialized in this area more than 10 years,rich experience and well after-sale service.
5. Technique support and training. Customization service, as per your request, we will customize our production
Configuration:
|
SINOTRUK HOWO A7 336 HP 6x4 Concrete mixer truck with 9.726L Displacement |
|||
| Main description | |||
| Overall Dimensions | 8840mm×2495mm×3800mm | ||
| Tare Weight | 11860kg | ||
| Front Overhang | 1500mm | Rear Overhang | 2365mm |
| Color | Optional | Gross of weight | 30000kg |
| Wheelbase | 3800mm+1350mm | Track (F/R) | 2022mm/1830mm |
| Chassis | |||
| Chassis Brand | SINOTRUK HOWO A7 | ||
| Chassis Model | ZZ1257N3841W, driving type 6x4 | ||
| Cab | HW76( left hand drive, air-conditioner, one sleeper) | ||
| Engine | SINOTRUK WD615.69, 336hp, Euro II emission standard,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection, displacement 9.726L | ||
| Gear Box | HW15710, 10 forward and 2 reverse | ||
| Traversing Mechanism | German ZF8118, hydraulic steering with power assistance | ||
| Rear Axle | ST16 tandem axle, ratio 5.73 | ||
| Wheels and tires | 12.00R20, 10 units with one spare wheel | ||
| Brakes |
Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake |
||
|
Electrics |
Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
||
| Mixing system | |||
| Mixing Volume | 8cbm | ||
| Water Tank Volume | 400L | ||
| Mixing Drum | Body steel plate thickness 6mm, Front end thickness 8m | ||
